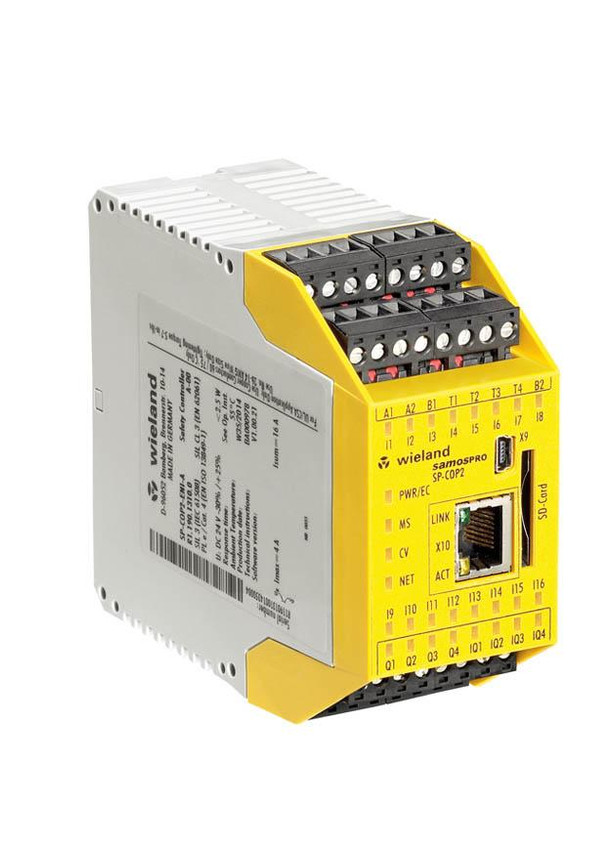

The SP-COP2-COMPACT samos® PRO modules with Ethernet are all 24VDC with USB interface, Ethernet interface and industrial Ethernet protocol and have 16 inputs, 4 outputs and 4 configurable I/O:
R1.190.1210.0 -screw terminals, pluggable, no Industrial Ethernet protocol
R1.190.1220.0- plug-in terminals, pluggable, no Industrial Ethernet protocol
Includes SD slot for program memory; memory card SP-COP-CARD can be ordered separately.
The samos® PRO COMPACT module series, as a whole, offers up to 20 safe inputs and 8 safe outputs at a width of only 45 mm already in the base module. With integrated USB, Ethernet and Industrial Ethernet communication. Flexible programmable by the free programming tool samos® PLAN 5+ with integrated simulation and logic analysis.
Through its extensive functionality, the compact design and the user-friendly software, these modules can already cover many different safety applications optimally and cost-effectively. With no extra effort the new modules can be quickly integrated in Ethernet-based networks, so that solutions can be implemented for remote maintenance. If necessary, the new modules from the COMPACT-family can be extended up to 168 safe inputs / outputs.
