$101.01
CWBS18-33-30D02
Alt: 14340785
$101.01

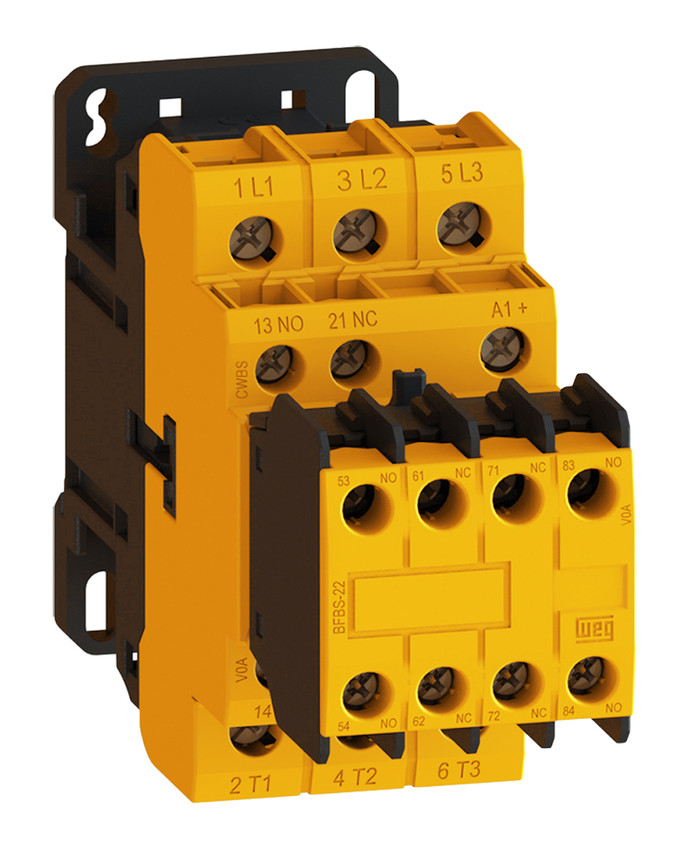

Safety Contactor, 18A, 3NO, 24VAC, 50/60Hz, Screw Terminal Connection
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG CWBS line of safety contactors offer a compact and powerful solution for safety applications and equipment!
These 3-pole safety contactors are available up to 80 amp with mirror and mechanically linked contacts. Safety control relays are also available at 10A for AC applications and 4A for DC applications.
They were developed to meet or exceed UL and IEC standards. Additonal features:
- Just 45mm wide up to 38 amp, 54mm wide from 40 to 80 amp
- The built-in auxilary contacts 1NO+1NC
- The different color makes it easy to identify the component on the safety circuit
- Help protect operators and equipment including protection against inadvertent operation
Marshall Wolf Automation is your authorized, stocking WEG distributor!
Series Features Include:
- Compact design
- Mirror and mechanically linked contacts
- Protection covers against manual operation
- 3-pole safety contactors available in AC and DC coils
- Panel mountable on 35mm DIN rails or screws
- Built-in auxiliary contacts 1NO+1NC
- “Zero-width” and tool-free mechanical interlocks
- Plug-in surge suppressor blocks
- Easy-to-use accessories through snap-to-connect function
