Weg
RW67-5D3-U040
Overload Relay, 3 Pole, 25-40A, Class 10, 2.87 x 1.97 x 4.17" (HWD), Use with CWM40 to CWM80 Contactor Models
$53.20

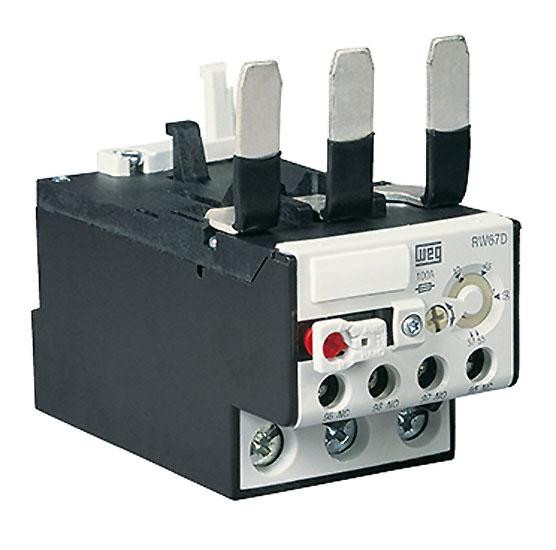

Product image is representative only, please verify specifications.
RW67-2D3-U040
Alt: 10844133
$53.20
Overload Relay, 3 Pole, 25-40A, Class 10, 2.87 x 1.97 x 4.17" (HWD), Use with CWM50 to CWM80 Contactor Models
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Configure Your Motor Starter Solution
Configure your DOL motor starter solution with guided selection of protection and control components: starters, contactor, relays and accessories
Description
WEG offers thermal overload relays in 3-pole versions up to 840A and 2-pole versions up to 80A for protecting motors in the event of overload or phase failure.
The RW series of thermal overload relays can be mounted directly on WEG contactors up to 105A and mounted separately from 112A to 800A.
Standard Features
- 2-pole and 3-pole versions available
- Trip class 10
- Adjustable current setting ranges
- Isolated N.C “Trip” and N.O “Alarm” auxiliary contacts
- Phase failure/unbalance sensitivity protection
- Selectable Manual/Auto RESET button with or without TEST
- Ambient temperature compensation from -13°F to +140°F
Wide Range of Accessories
- Panel mounting brackets
- External RESET pushbuttons
- Connector links
- Spare lugs
May 2023: Product line extention announcement -
- IEC contactors CWB 95 – 125A
- NEMA contactor CWBN size 3
- Thermal overload relays RW117-3D 63 – 140A associated with the above contactors
Specifications
Alternate Part Number
10844133
Amp Rating
See Spec
Motor Control Type
Overload Relays
Horsepower
See Spec
Poles
3 Pole
All - Specific Ratings
IP20 Rated
Series
RW Series
Options
No Special Options
Terminal Type
Lug Terminals
All - Voltage
690V
Warranty
18 Months
Length/Depth
4.17"
Width
1.97"
Weight
1
Height
2.87"
