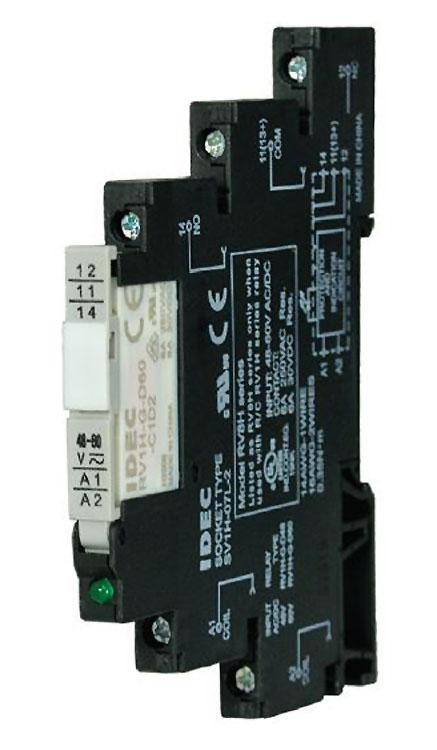

RV8S-L-D24-D24

The Idec RV8H series Interface relays are ideal for PLC and electronic systems, industrial automation, panel builders, assembly machine applications and other applications that require a high switching capability in a compact space.

• Can be used as a universal interfaces between the controller and the actuator to switch small and medium size loads.
• Reduce installation time with these pre-assembled relays and sockets.
• Class I, Division 2 means flammable gases, vapors or liquid may be present. These are not normally present in an explosive concentration but may accidentally exist.

Replacement relays and sockets are also available. Optional accessories include jumpers, spacers and marking plates to facilitate wiring and quick identifications.

Marshall Wolf Automation is your authorized stocking distributor for the full line of IDEC!

Search all Solid State Relays

RV8 Series Updates:

• Effective September 2017 RV8 series 14mm interface relays will have two DC ratings added to the UL certifications; 1 pole 12A, 24VDC resisitive and 2 pole 6A, 24VDC resistive.
• Effective February 2018 RV8H/RV8S will have a new locking lever shape, the modified relays will be 1.4mm longer than the current relays.

Features Include:

• Product Type: 6mm SSR & Screw Socket Assem. 240VAC out 24VDC in
• Input Voltage: 19.6 - 30VDC
• Contact Rating: 24VDC - 3.5A
• Contact Configuration: SPST
• Terminal Type: Screw
• Pre-assembled relay and DIN mount socket
• Built-in LED indicator
• Screw and spring-clamp socket terminations
• Operating temperature: -20 to +70C
• Options: Indicator Light

Need More Information?

• Idec Rv8 Series Interface Relay Datasheet
• Idec Rv8 Series Interface Relay Catalog
