FC6A-SIF52
Alt: 1/31/2022 IDEC Accepting Orders for OEM and Quantity Only
$227.86

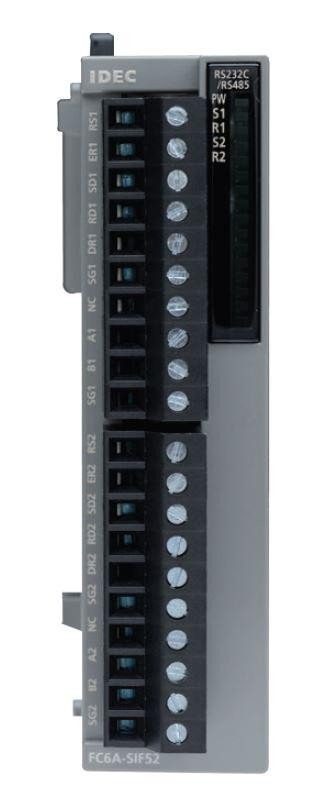

RS232C/RS485 Combo Serial Communication Expansion Module, MicroSmart FC6A
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Number of Ports: 2
- Number of Connectable CPU: 15 max. (when using an unibody expansion interface modules)
- Communication Type: RS232C or RS485 selectable (per port)
- Maximum Baud Rate: 115,200 bps
- Number of Slaves: RS485: 31 (per port)
- Power Consumption Inside Module (without connection cartridge): 24V DC: 35mA, 5V DC: 35mA
- Up to 15 modules can be configured
- Combo RS232C/RS485 Ports
- Both ports can be used in parallel
- Supports Modbus RTU, Maintenance and User Communication
