RGH1A60D41KGE
Alt: Manufacturer Minimum Order 5 Pieces, Non-Cancellable, No Returns
$102.40

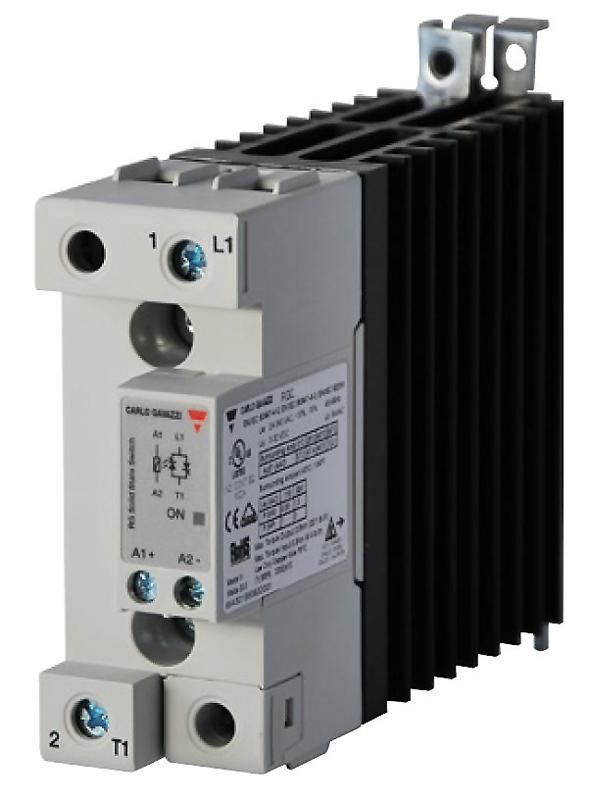

Solid State Relay with Integrated Heat Sink, 1-Pole Switching, Zero Cross, 600VAC, 1600Vp, 40A, 4-32VDC Control Voltage, Screw Connection for Input, Box Clamp for Output Terminals, Contactor Configuration, Manufacturer Minimum Order 5 Piece
- Minimum Purchase:
- 5 units
Description
Features Include:
- Rated Operational Current @ TA 40°C: 40 AAC (6600 A2s)
- Control Voltage: 4 - 32 VDC
- Rated voltage, Blocking voltage, Switching mode: 600 VAC, 1600 Vp ZC
- 1600 Vp for blocking voltage with integrated over voltage protection
- Product Width: 35 mm
- Input terminals: screw
- Material: PA66 or PA6 (UL94 V0), RAL7035 Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
Technical Information:
Read More About Solid State Relays and Carlo Gavazzi Here!
