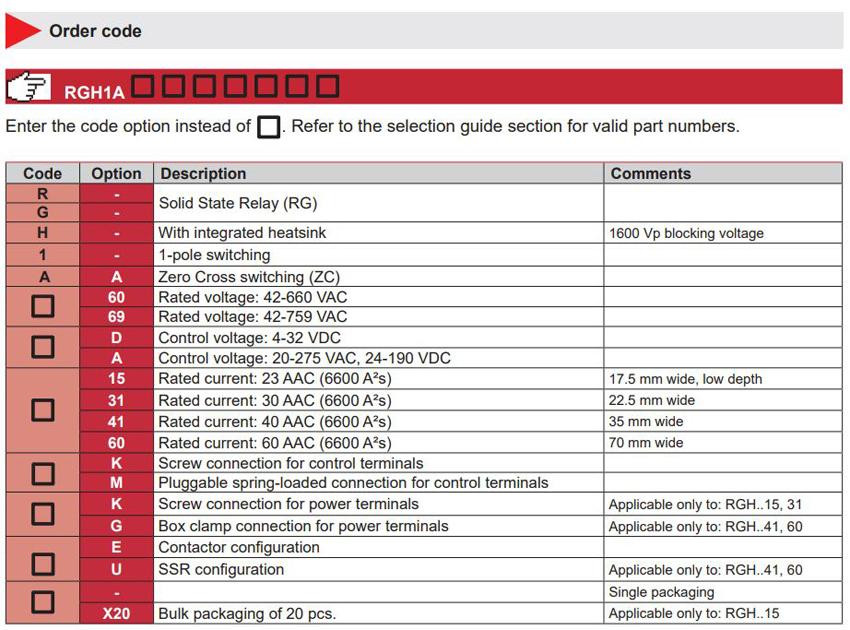

RGH1A60D31KKE
Alt: Minimum Order 5 Pieces, Price per Piece
$98.40

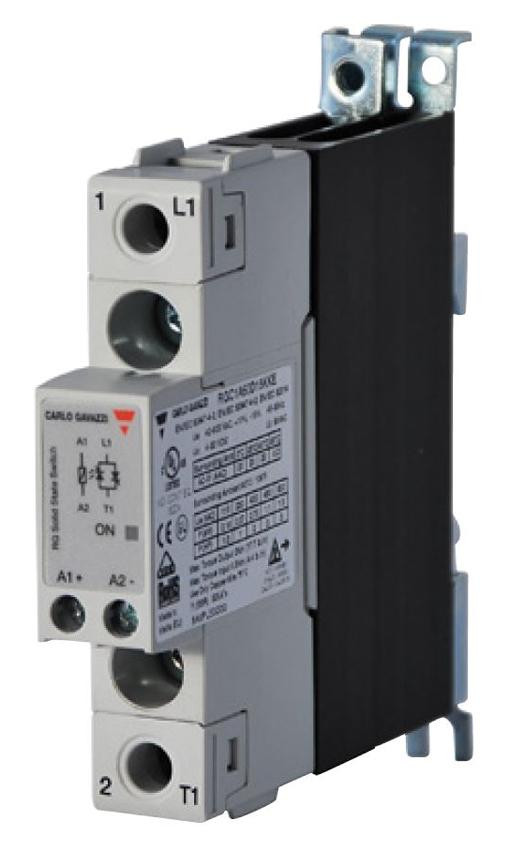

Solid State Relay with Integrated Heat Sink, 1-Pole Switching, Zero Cross, 600VAC, 1600Vp, 30A, 4-32VDC Control Voltage, Screw Connection for Input/Output Terminals, Contactor Configuration 10 Pieces, Non-Cancell
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 5 units
Configure Your Optimal Enclosure Solution
Choose the right enclosure with expert recommendations on compatible accessories like subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Alternate Part Number
Minimum Order 5 Pieces, Price per Piece
Amp Rating
30 Amp
Control Voltage
4 to 32VDC
Operating Voltage
600VAC
Output Switching
Zero Crossing
Phase
Single Phase
All - Specific Ratings
IP20 Rated
Series
RGC Series
Type of Relay
SSR w/Heatsink
Warranty
1 Year
Weight
1
Features Include:
- Rated Operational Current @ TA 40°C: 30 AAC (6600 A2s)
- Control Voltage: 4 - 32 VDC
- Rated voltage, Blocking voltage, Switching mode: 600 VAC, 1600 Vp ZC
- 1600 Vp for blocking voltage with integrated over voltage protection
- Product Width: 22.5 mm
- Input terminals: screw
- Material: PA66 or PA6 (UL94 V0), RAL7035 Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
