Available Now! RGC3A60A30KGE
Available Now! (2 in stock)
Carlo Gavazzi

RGC3A60A30KGE

Alt: Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 2 Pieces.

$318.40

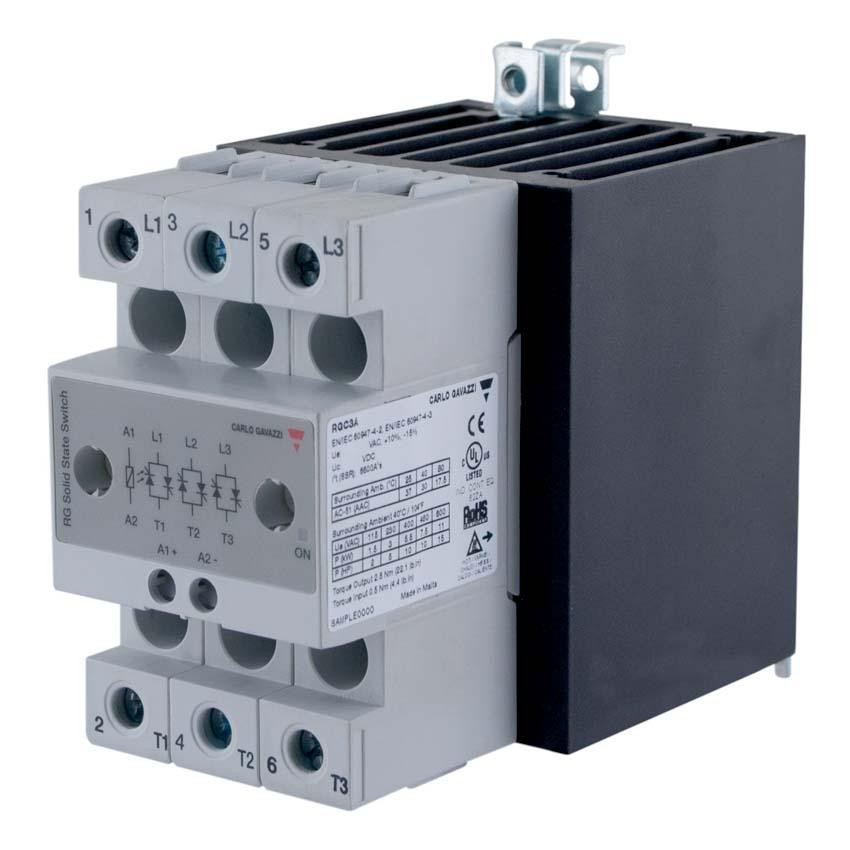

Solid State Relay with Integrated Heat Sink, 3-Pole Switching, Zero Cross, 600VAC, 1200Vp, 3 x 30A, 20-275VAC, 24-190VDC Control Voltage, Screw Connection for Input, Box Clamp for Output Terminals, Contactor Configuration

Weight:
1.86 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.

Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Specifications
Amp Rating 30 Amp
Control Voltage 20 to 280VAC
Operating Voltage 600VAC
Output Switching Zero Crossing
Phase Three Phase
All - Specific Ratings IP20 Rated
Series RGC Series
Type of Relay SSR w/Heatsink
Warranty 1 Year
Alternate Part Number Minimum Order 1 is Limited to Available Stock Only! Then the Minimum will be 2 Pieces.
Weight 1.86
Quantity 2

Series Features Include:

  • Rated Voltage: 6000 VAC
  • Control Voltage: 20-275 VAC, 24-190 VDC
  • Rated Operational Current per pole @ 40°C: 30 AAC (6600 A2s)
  • Product Width: 70 mm
  • 3-phase zero cross switching solid state contactor for 3-pole or 2-pole switching
  • Ratings up to 660 VAC 75 AAC/pole (RGC2A), 65 AAC/pole (RGC3A) @ TA 40°C
  • Optionally integrated monitoring for SSR and load malfunction with alarm output for remote signaling with the RGC..M
