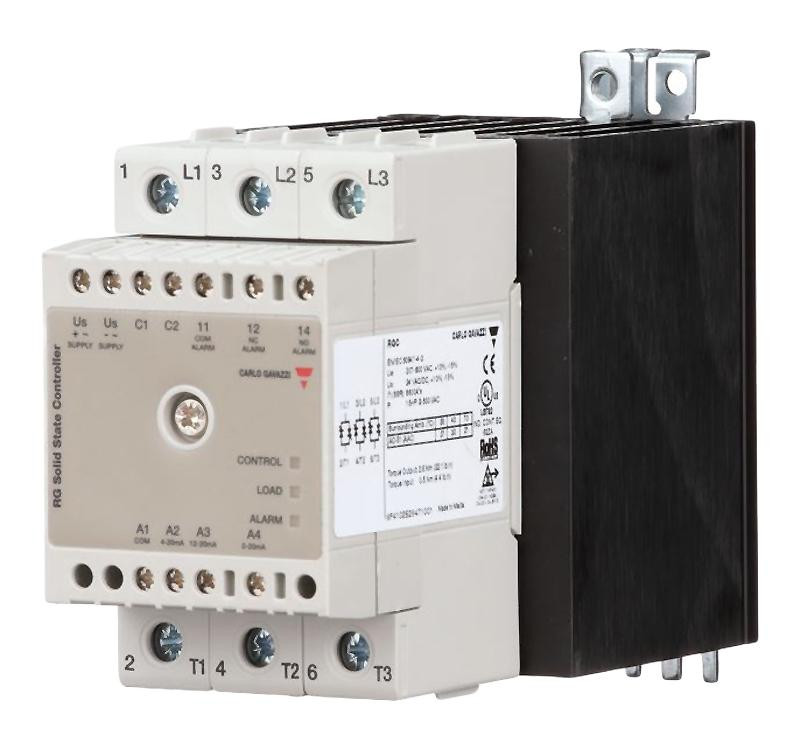

RGC2P60V25C1DM
$263.20
Solid State Relay with Integrated Heat Sink, 2-Pole Switching, 1-Pole Direct, Proportional, 600VAC, 1200Vp, 2 x 25A, 0.5VDC Control I/P, 1 FC ON, 1FC OFF @ 50% Input, 24VAC/DC External Supply, Monitoring
- Weight:
- 1.46 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Series Features Include:
- 2-pole and 3-pole analog switching solid state contactors
- Rated operational voltage: 180 - 660VAC, 1200Vp
- Rated operational current: 25: 25AAC
- Control inputs: 0-5VDC, 1-5VDC, 0-10VDC
- External Supply (Us): 24VAC/DC
- Local setting through external potentiometer
- Switching modes: phase angle or distributed full cycles (1, 4 or 16 full cycles)
- Soft start feature with selectable ramp time up to 5 seconds
- Integrated varistor protection on output
- Monitoring for SSR and load malfunction
- EMR output for alarm indication
- 100kA short circuit current rating according to UL508
- DIN or panel mount
Technical Information:
