Carlo Gavazzi
NRGC
NRG Controller with Modbus RTU over RS485, Use with NRG Solid State Relays (RGC1x60CMxxGEN) and NRG Internal BUS Cables (RCRGN-xxx-2)
$291.20

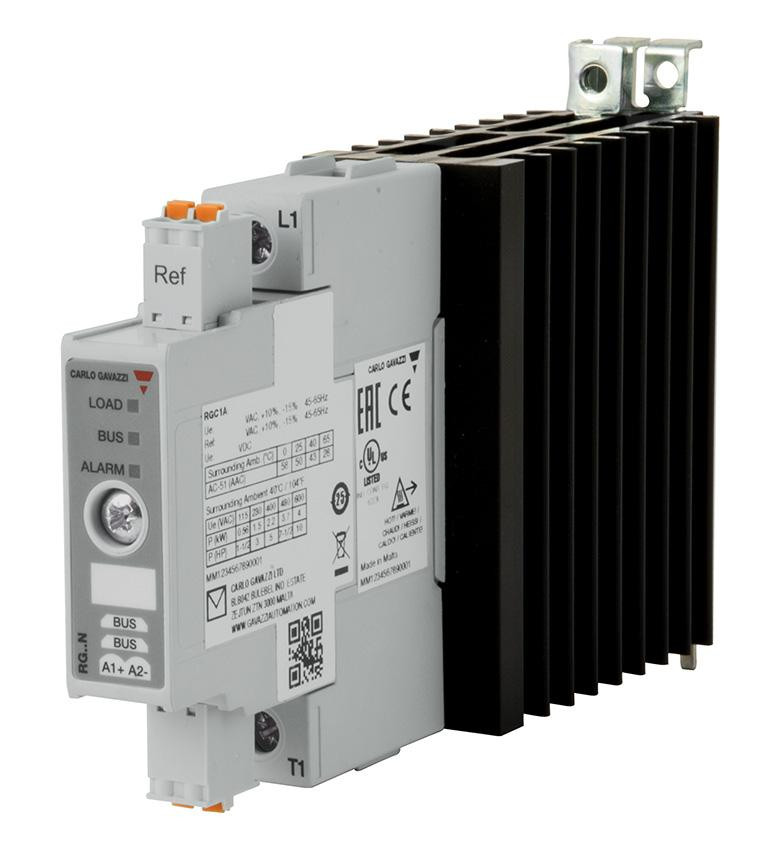

RGC1P60CM42GEN
Alt: 1P-SSC-PS 600V 43A 1200VP-E-CL
$387.20
Solid State Relay with Heatsink, 43AAC, 1-Pole, Proportional Switching, 600VAC, 50/60Hz, Box Clamp Connection for Power Terminals for Integration within an NRG System
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Rated Voltage: 600 VACrms
- Rated Operational Current @ 40°C: 43 AAC
- Connection Power: Box Clamp
- Material: PA66 or PA6 (UL94 V0), RAL7035
- Mounting: DIN rail (for RGC only) or panel
- Product Width: 35 mm
- Touch Protection: IP20
- Overvoltage Category: III, 6kV (1.2/50μs) rated impulse withstand voltage
- Isolation Input to Output: 2500 Vrms
- Input and Output to heatsink: 4000 Vrms
- Transfer characteristics: Linear with output power
Technical Information:
- Carlo Gavazzi RG..CM..N 1-Phase Solid State Relay with Communication Interface Technical Data
- Carlo Gavazzi NRG Series Solid State Relays with Real-Time Monitoring Flyer
- Carlo Gavazzi NRG Series Solid State Relays with Real-Time Monitoring Brochure
- Carlo Gavazzi NRG Series Solid State Relay Operating Instructions
- Carlo Gavazzi NRG Series Solid State Relay Sales Presentation
- Carlo Gavazzi NRG Digital Solid State Relays White Paper
Read More About Solid State Relays and Carlo Gavazzi Here!
