RGC1A60D60KGE
Alt: Minimum Order 5 Pieces, Price per Piece
$131.20

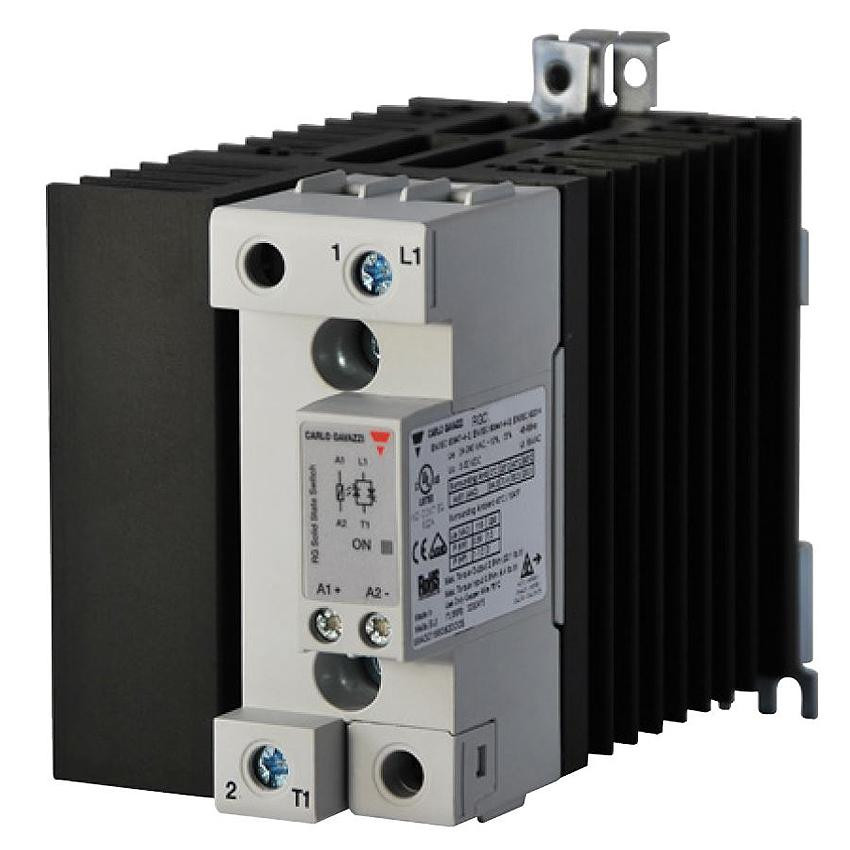

Solid State Relay with Integrated Heat Sink, Zero Cross, 1-Pole Switching, 600VAC, 1200Vp, 60A, 4-32VDC, Screw Connection for Input, Box Clamp for Output Terminals, Contactor Configuration
- Weight:
- 2.15 LBS
- Minimum Purchase:
- 5 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Rated Voltage, Switching Mode: 600 VAC, Zero Cross
- Rated operational current @ 40°C: 60 AAC (3200 A²s)
- Control Voltage: 4- 32 VDC
- Product Width: 70 mm
- Material: PA66 or PA6 (UL94 V0), RAL7035, Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- Mounting: DIN rail (panel mount also possible)
- Touch Protection: IP20
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- Up to 18000 A²s for I²t for protection coordination with M.C.Bs
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
Technical Information:
