RGC1A60D20KKE
Alt: Minimum Order 10 Pieces, Price per Piece
$56.00

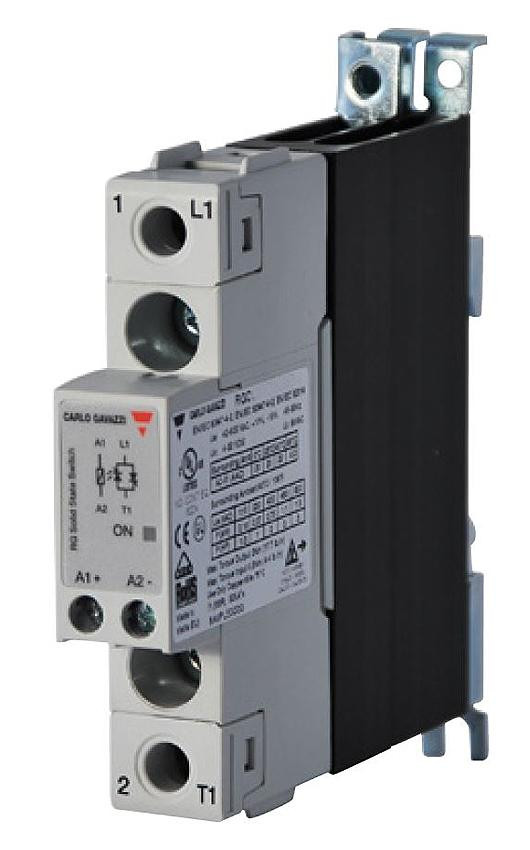

Solid State Relay with Integrated Heat Sink, Zero Cross, 1-Pole Switching, 600VAC, 1200Vp, 23A, 4-32VDC, Screw Connection for Input/Output Terminals, Contactor Configuration
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 10 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Rated operational current @ 40°C: 23 AAC (525 A2s)
- Material: PA66 or PA6 (UL94 V0), RAL7035, Glow wire ignition temperature and Glow wire flammability index conform to EN 60335-1 requirements
- Mounting: DIN rail (panel mount also possible)
- Product Width: 17.5 mm, low depth
- Touch Protection: IP20
- Overvoltage Category: III, 6 kV (1.2/50 μs) rated impulse withstand voltage
- Up to 18000 A²s for I²t for protection coordination with M.C.Bs
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
Technical Information:
