RGC1A23A25KGU
Alt: Minimum Order 10 Pieces, Price per Piece
$68.00

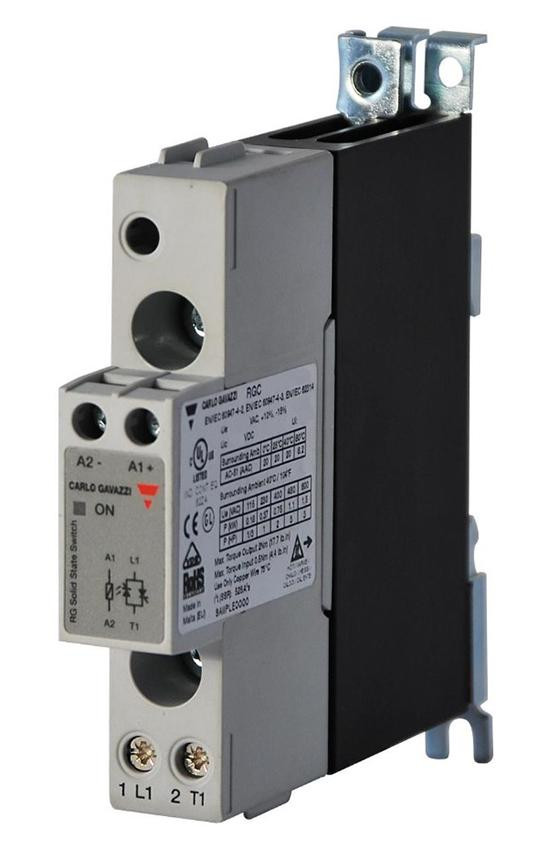

Solid State Relay with Integrated Heat Sink, Zero Cross, 1-Pole Switching, 24-264VAC, 800Vp, 25A, 20-275VAC, 24-190VDC Control Voltage, Screw Connection for Control Terminals, Box Clamp for Power Terminals, SSR Configuration
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 10 units
Description
Carlo Gavazzi is a worldwide leader that designs and manufactures sensors, solid state relays and safety devices as well as monitoring relays, timers and energy management systems.
Carlo Gavazzi was founded in Milan, Italy in 1931 and the U.S. headquarters is located in Buffalo Grove, Illinois.
Features Include:
- Rated operational current @ 40°C: 25 AAC (1800 A2s)
- Control Voltage: 20-275 VAC, 24-190 VDC
- Rated Voltage: 230 VAC
- Switching Mode: Zero Crossing
- Product Width: 17.5 mm, low depth
- Mounting: DIN rail (panel mount also possible)
- Operational frequency range: 45 to 65 Hz
- Output protection: Integrated varistor
- 100kA short circuit current rating according to UL508
- Conformance to Railway standards
Technical Information:
