US-R25PN

Reflective Ultrasonic Sensor, PNP. Wave ON 60~250mm Detecting Distance

Features Include:

• Microminiature ultrasonic sensor embedded in a conventional sensor housing
• Reliably detecting transparent packaging PET bottle or container
• Adjustment POT are equipped on the both model
• Detection Method: Reflective
• Detection Distance: 60-250mm
• Detection Object: 30 x 30mm
• Current Consumption: 25mA or less
• Power Supply: 12-24V DC ±10‚àö√Ƭ¨‚à´‚àö√± / Ripple 10‚àö√Ƭ¨‚à´‚àö√± or less
• Operation Mode: Detect ON
• Ultrasonic Frequency: 380kHz ±10kHz
• Hysteresis: ON: 30 ms or less / OFF: 50 ms or less
• Response Time: 10ms or less
• Output Mode: Rating: Sink current 100 mA (30 VDC) or less
• Volume (VR): Distance adjustment
• Weight: approx. 80g or less

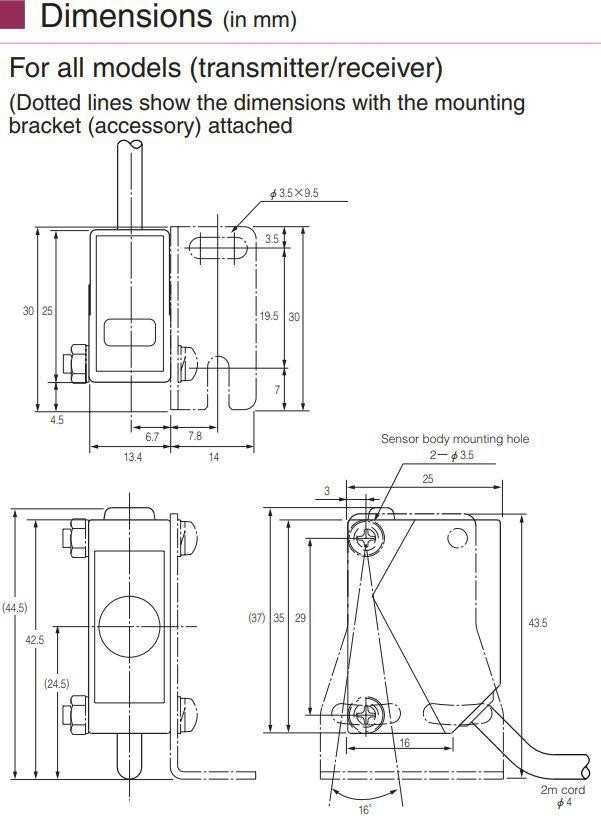

Connection:

• Attached cord (dia. 4mm)
• 0.2mm2 x 2 cores, 2m

Material:

• Case/nut: Heat resistant ABS resin
• Detection side: Carbon calcium Silicone-Acrylic coating) conductive EPDM

Indicator:

• Red LED: Operation indicator
• Green LED: Stability Indicator

Environmental Specifications:

• Ambient Temperature: -25° - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Ambient Wind Speed: 1m/s max.
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
• Shock: 500 m/s2 / 3 times each in 3 directions
