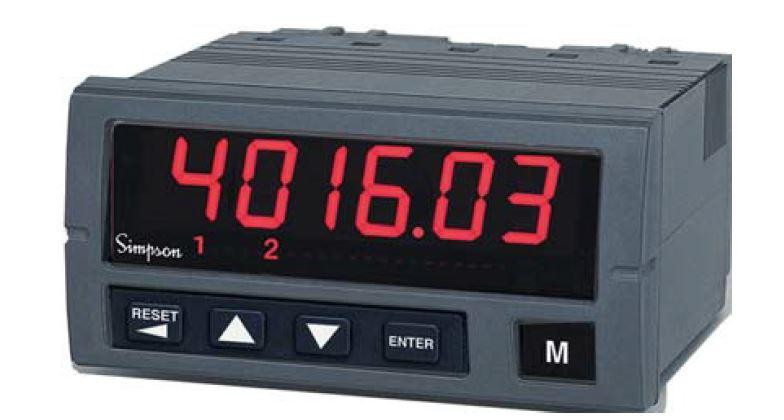

S663-1-1-0-0-0

Simpson offers a complete line of counters!

• S660 totalizer counters
• S661 preset rate counters
• S662 batch/dual counter
• S663 rate/totalizer counter
• S664 frequency counter

The front cover is rated NEMA 4X and can easily be programmed from the front panel.

Marshall Wolf Automation is your authorized Simpson Electric distributor!

Features Include:

• Type: 6-digit, 7-segment, red LED
• Height: 0.56" (14.2mm)

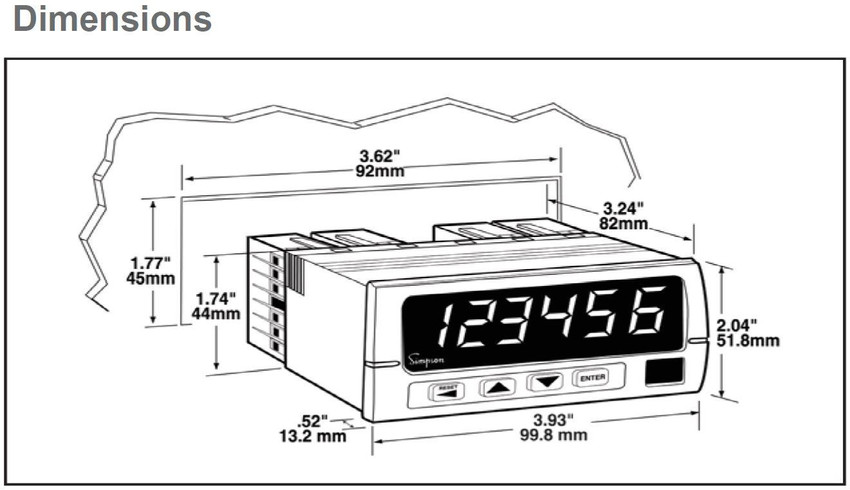

• Panel Cutout: 3.62" x 1.77" (92mm x 45mm)
• AC Voltages: 120 or 240VAC, ±10%
• Power Consumption: 3VA
• Easily programmed from the front panel
• Remote reset capability
• 5A Relay Outputs
• Optional 12DCV Excitation

Input variety:

• Quadrature, Switch, TTL, CMOS, NAMUR, PNP, NPN

Software functions include:

• Password
• Display Scaling
• Set Point Programming
• Decimal Point Selection

Need More Information?

• Simpson Electric S663 Preset Rate/Totalizer Counter Datasheet
• Simpson Electric S663 Preset Rate/Totalizer Counter Operation Manual
