18182000014

18182000014

Alt: 181 8200 0014, PF-RH-30000-WD-SS

$290.25

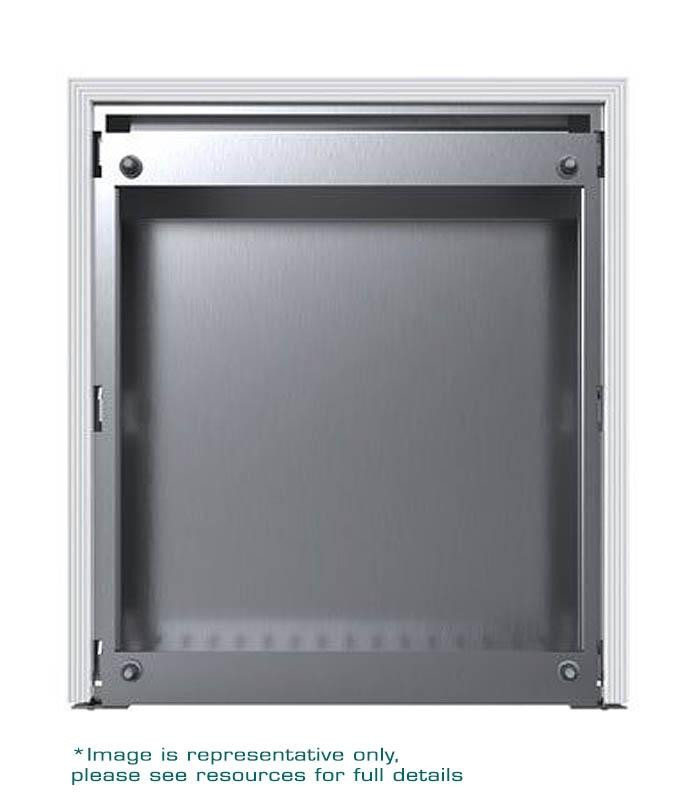

Rainhood, 304 Stainless Steel, NEMA 4/4X, 276 x 322 x 102mm, for PF 3XOOO & PFA 30000

Weight:
6.45 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Rainhoods rated to NEMA Type 3R/4/4X and IPx6 when used with Pfannenberg Filterfans! Options for FDA compliant versions as well.
Description

UL Type 4X rainhoods from Pfannenberg:

  • Available in stainless steel (-SS) which is NEMA Type 4/4X, in RAL 7035 (-LG) and ANSI 61 (-GY)
  • Robust sealing against enclosure - the gasket features multiple seal dams with a high compression ratio and dense closed cell material, this gasket is on both the standard and sanitary designs
  • Easy washdown and disinfection - smooth, clean and seamless design!
  • Compatible with existing fan cutouts - the rainhoods come in different sizes and are compatible with existing Pfannenbert Filterfans® and exhaust filters
  • Easy maintenance - easily remove the rainhood for maintenance and filter mat replacement - the tool-less design is standard
  • FDA compatible white gasket design (PF-SH series) is ideal when your rainhood is used on an enclosure for food and beverage applications
  • NEMA Type 3R, 4, 4X rated/ IPx6 rating
  • Minimar air loss compared to 50%+ from competitors!
  • Please note our rainhoods only work with Pfannenberg Filterfans
