$9.41
B30-17G-24VDC
Alt: B30 Series
$8.06

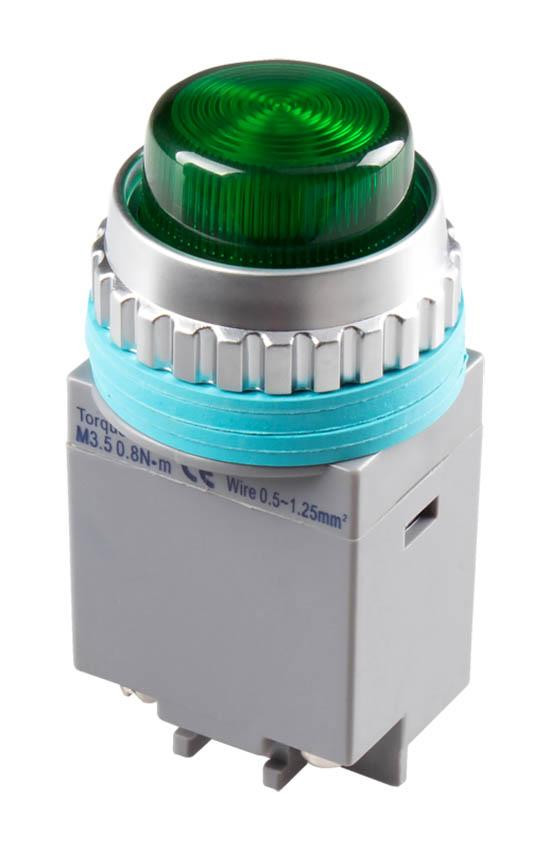

Pilot Light, Ø30mm, LED, Round Dome, Green, 24VDC, Illuminated, IP65
- Weight:
- 0.15 LBS
- Minimum Purchase:
- 1 unit
Description
KACON is a Korean manufacturer for a full line of switches and control components. They work with many international brands and are sold through key distributors around the world.
Their products are readily available from Illinois and they have very competitive pricing.
Features Include:
- Degree of protection: IP65
- Ambient Temperature (Operation): -25°C~ +70°C
- Ambient Temperature (Storage): -30°C~+80°C
- Ambient Humidity: 35~80% RH
- Recommended Wire: Copper wire 14-16 AWG
LED:
- Nominal Current (AC): Approx. 15mA
- Nominal Current (DC): Approx. 15mA
- Voltage: 24VAC
- Expected Life: Min. 50,000 hrs
Need More Information?
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Kacon
B30-27G-24VDC
Pushbutton, Ø30mm, Illuminated, Momentary, Round Head, IP63, 110V, 16A, 1NO/1NC, 24VDC, Green
$11.14
$8.06
Kacon
B30-27B-24VDC
Pushbutton, Ø30mm, Illuminated, Momentary, Round Head, IP63, 110V, 16A, 1NO/1NC, 24VDC, Blue
$11.14
$8.06
$8.06
Kacon
B30-27Y-24VDC
Pushbutton, Ø30mm, Illuminated, Momentary, Round Head, IP63, 110V, 16A, 1NO/1NC, 24VDC, Yellow
$11.14
Kacon
B30-27R-24VDC
Pushbutton, Ø30mm, Illuminated, Momentary, Round Head, IP63, 110V, 16A, 1NO/1NC, 24VDC, Red
$11.14
Kacon
B30-27W-24VDC
Pushbutton, Ø30mm, Illuminated, Momentary, Round Head, IP63, 110V, 16A, 1NO/1NC, 24VDC, White
$11.14
