IDEC
PN1L-M2AFB002E0Y

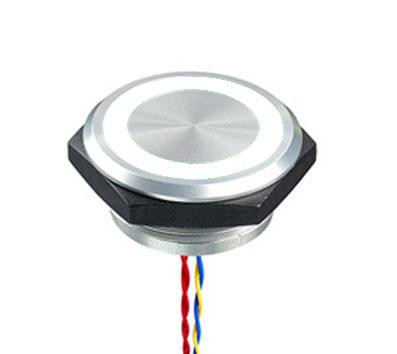

Pushbutton Ø30mm, 24VDC Yellow Translucent LED Ring, Piezo, Momentary, SS, 316L, IP68/69K
$75.68
PN1L-M2AFB002D2A
Alt: Solid State Piezo Switch, No Moving Parts!
$96.82
Pushbutton Ø30mm, 12VDC Red/Grn Translucent LED Ring, Piezo, Momentary, SS, 316L, IP68/69K
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Piezo switches are based on solid state technology whicn means no moving parts and an exceptionally long lifespan!
The PW1L (22mm) and PN1L (30mm) series is designed for demanding applications, when reliability is critical.
The flush mount bezel is flat and completely closed which prevents liquids and other contaminants from getting in. Ideal for medial and food processing applications!
Available in 22mm (PW1L) or 30mm (PN1L), they are available in 12VDC or 24VDC.
You can also choose from a side-viewable LED ring or a LED dot indicator.
Features Include:

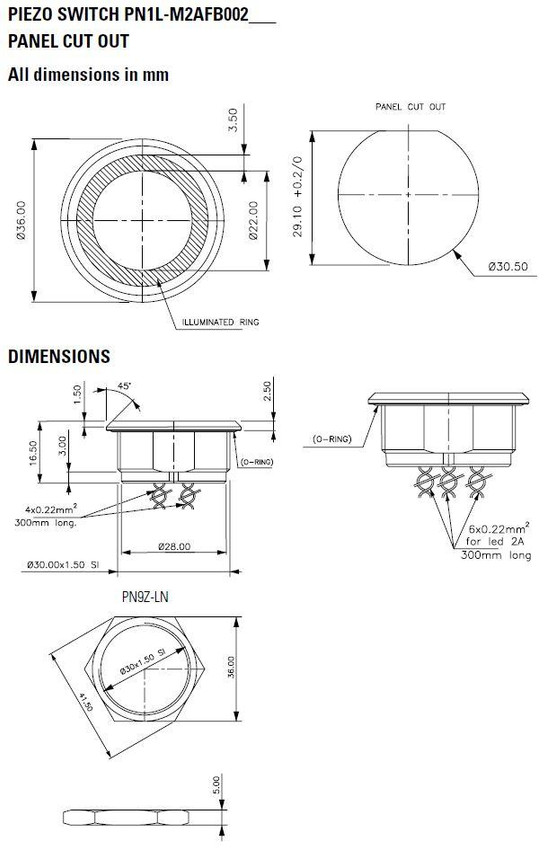

- Panel Mount Cutout: 30mm diameter
- Number of Illumination Colors: 2
- Contact Rating: 1A, 24VAC/DC rating
- Illumination Voltage: 12 VDC
- Contact Configuration: 1NO
- Cable Length: 300 mm
- Stainless steel 316L housing
- Short uni-body construction
- Single or dual-color LED illumination
- Side-viewable LED models
- IP68 & IP69K protection
- Solid state - no moving parts
