IDEC
HW1L-M1F10QD-A-12V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Amber, 12VAC/DC, NCNR
$26.21
Product image is representative only, please verify specifications.
HW1L-M1F10QD-G-12V
Alt: This item replaces HW1L-M1F10Q-G-12V, Non-Cancellable, No Returns
$26.21
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Green, 12VAC/DC, NCNR
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Description
The HW series from IDEC is a 22mm line of switches, pushbuttons and pilot lights.
- Space saving with reduced contact block depth
- IP20 finger-safe protection
- High voltage LED for illuminated pushbuttons
- Can be ordered assembled or in components
- Pushbuttons, e-stops and switches have contact ratings of 10A, 600V
- IP65 and UL50 in most cases (except illumuniated selector switches), dual pushbuttons are IP40

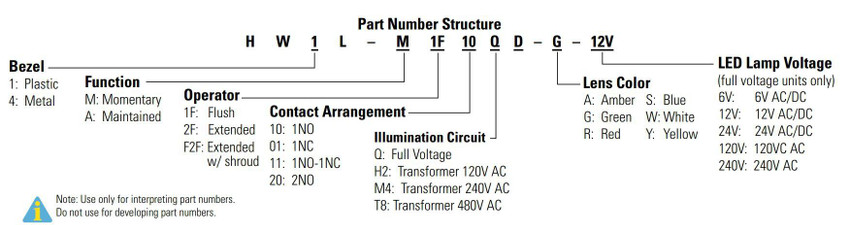

Series information:
- HWxB: Non-illluminated
- HWxL: Illuminated
- HW1 - Round black bezel
- HW2 - Square black bezel
- HW4 - Round metal bezel
Assembled units:
- Available in momentary (M) or Maintained (A)
- Contact configurations:
- 10: 1NO
- 01: 1NC
- 11: 1NO/1NC
- 20: 2NO
- 02: 2NC
- 22: 2NO/2NC
Features Include:
- Finger safe (IP20) screw terminals standard, other terminal styles available
- All E-Stops meet EN418 (IEC compliant, positive action)
- UL listed, CSA certified, TUV approved, and CE marked
- Super bright incandescent or LED illumination
- UL Type 4X, IP65
- 600V/10A contacts with a wide operating range from 5mA at 3V AC/DC to 10A at 120V AC
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
IDEC
HW1L-M1F10QD-Y-12V
Pushbutton, 22mm, Plastic, Round, Flush, Yellow, LED, Momentary, 1NO, 12V, NCNR
$26.21
IDEC
HW1L-M1F10QD-W-12V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED White, 12VAC/DC, NCNR
$26.21
IDEC
HW1L-M1F10QD-S-12V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Blue, 12VAC/DC, NCNR
$33.29
IDEC
HW1L-M1F10QD-R-12V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Red, 12VAC/DC, NCNR
$22.93
IDEC
HW1L-M1F10QD-G-240V
Pushbutton, 22mm, Plastic, Round, Flush, Green, LED, Momentary, 1NO, 240V, NCNR
$27.28
IDEC
HW1L-M1F10QD-G-6V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Green, 6VAC/DC, NCNR
$26.21
IDEC
HW1L-M1F10QD-G-24V
Pushbutton, Ø22mm, Plastic, Round, Momentary, Flush, 1NO, Full Voltage, LED Green, 24VAC/DC
$26.21
IDEC
HW1L-M1F10QD-G-120V
Illuminated Pushbutton, 22mm, Plastic Bevel, Momentary, Round, Flush, 1NO, Full Voltage, Green Lens, 120VAC/DC LED Lamp Voltage, Screw Terminal
$27.28
