PW1L-RYAFB002D0G
IDEC

PW1L-RYAFB002D0G

Alt: Solid State Piezo Switch, No Moving Parts!

$57.66

Pushbutton Ø22mm, 12VDC Green LED Ring, Piezo, Momentary, 4.5mm Chamfer Bezel, SS, 316L, IP68/69K

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
This is a piezo switch pushbutton, solid state - no moving parts!
Description

Piezo switches are based on solid state technology whicn means no moving parts and an exceptionally long lifespan!

The PW1L (22mm) and PN1L (30mm) series is designed for demanding applications, when reliability is critical.

The flush mount bezel is flat and completely closed which prevents liquids and other contaminants from getting in. Ideal for medial and food processing applications!

Available in 22mm (PW1L) or 30mm (PN1L), they are available in 12VDC or 24VDC.

You can also choose from a side-viewable LED ring or a LED dot indicator.

Features Include:

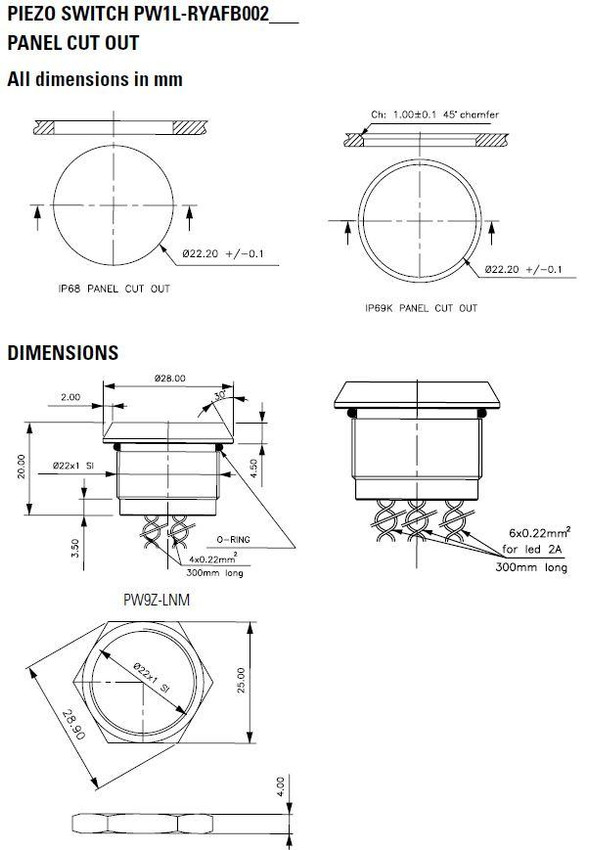

  • Panel Mount Cutout: 22mm diameter
  • Contact Rating: 1A, 24VAC/DC rating
  • Illumination Voltage: 12 VDC
  • Contact Configuration: 1NO
  • Cable Length: 300 mm
  • Stainless steel 316L housing
  • Short uni-body construction
  • Single or dual-color LED illumination
  • Side-viewable LED models
  • IP68 & IP69K protection
  • Solid state - no moving parts
