Altech Corp.

3PSF401

Alt: 3PS Series

$6.78

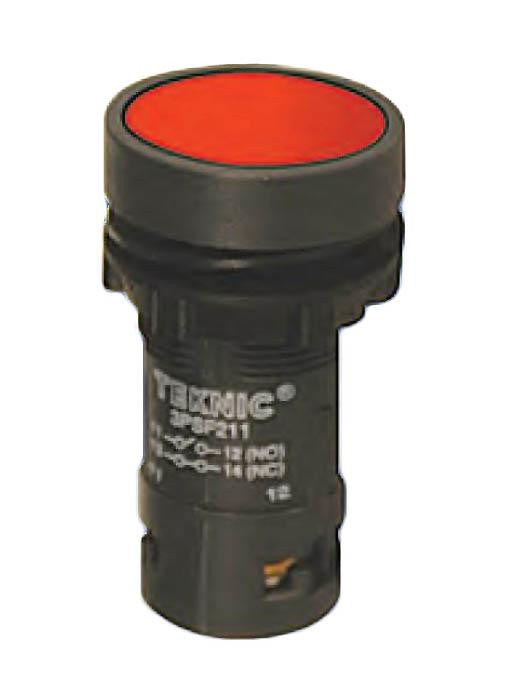

Pushbutton, Economy, 22mm, Momentary, Flush, Red, 1NC

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Pushbutton, Economy, 22mm, Momentary, Flush Red, 1NC

Features Include:

  • Contact Operation: NO/NC Slow Break<.
  • Contact Configurations: 1NO; 1NO + 1NC; 2NC.
  • Terminal Torque: 0.5Nm / 4.5lbs. in..
  • Degree of Protection: IP65 (as per IS 13947); Nema Type 4X,12 (as per UL50).
  • Temperature Range: -25° to +85°C (-13°F to 180°F).
  • Short Circuit Protection: 4A fuse.
  • Dielectric Test: 2.5KV.
  • Rated Insulation Resistance: 500M ohm.
  • Rated Thermal Current: 2.5A.

Contact Material:

  • Moving Contact: Phosphor Bronz.
  • Fixed Contact: Brass silver plated 2 microns.
