Weg
CSW30-BS2

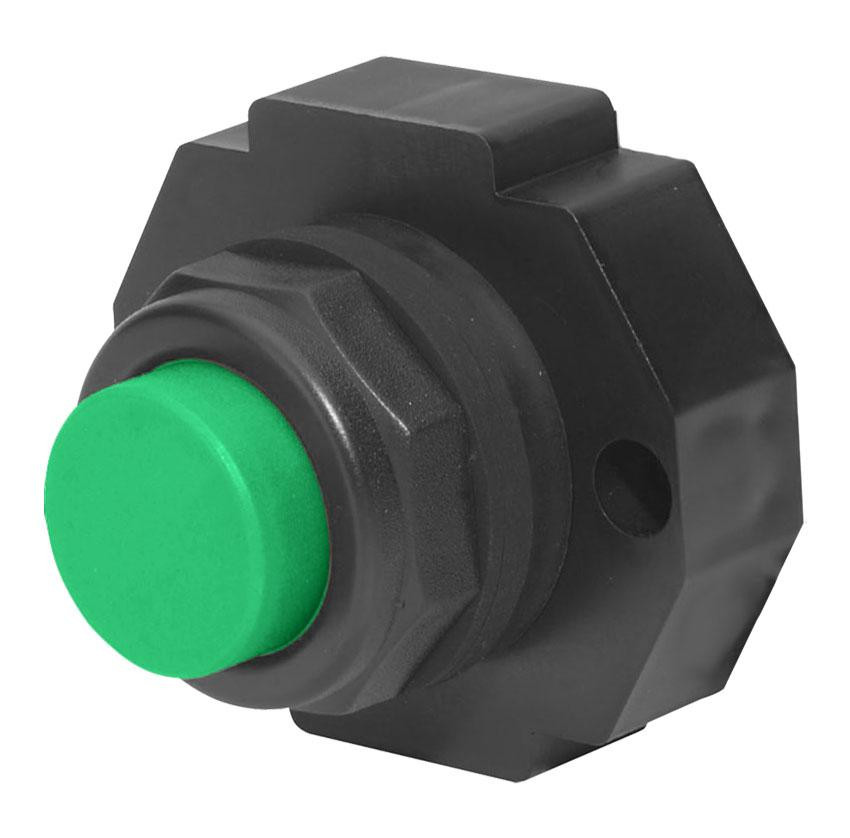

Pushbutton Operator, Ø30mm, Non-Illuminated Extended, Green, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
$15.34
CSW30H-BS2
Alt: 14380548
$18.29
Pushbutton Operator, Ø30mm, Non-Illuminated Extended, Green, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Series Features Include:
- NEMA 4, IP65 Rated
- Fits 1-13/64 (30.5mm) hole without notch required
- Contact blocks snap-in (fast & easy assembly)
- Up to 8 contact blocks for non-illuminated operators and up to 4 contact blocks for illuminated operators
- LED lamps with built-in leakage protection
- Security features Standard: Screw tightening mounting bracket, Optional: Rubber boots for an additional layer of protection from corrosive chemicals from hands on operations or wash-down environments
Technical Information:
