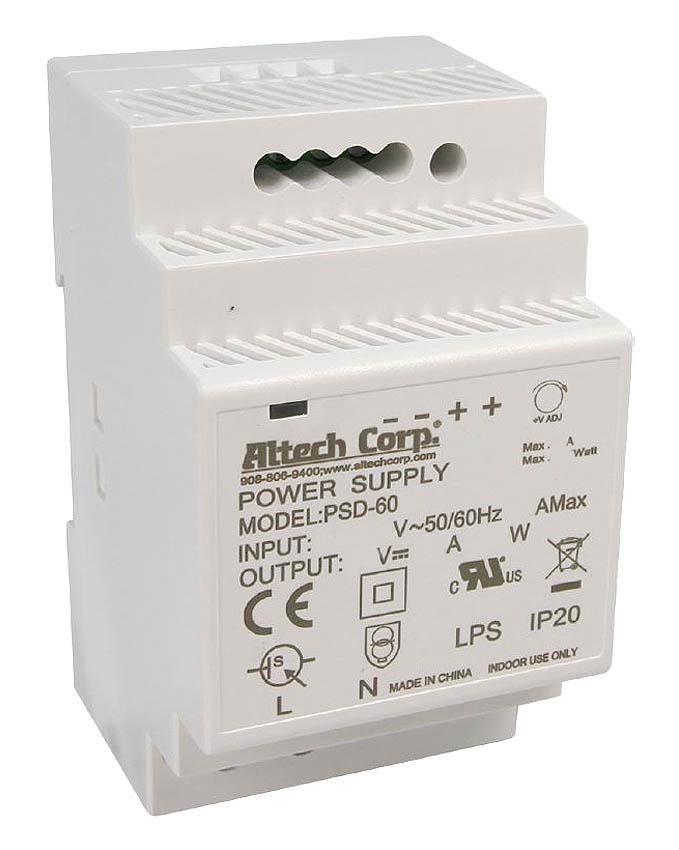

PSD-6005
Altech Corp.

PSD-6005

Alt: PSD-60 Series

$38.15

Power Supply, Low Profile, 85% Efficiency, 5VDC Voltage Output, 4.5 Amp, 23W, 80mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 52.5 x 58mm, Class II Isolation Level, PSD-60 Series

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Small Size, Universal Input, Class II Isolation and a 3 Year Warranty!

Our Altech PSD series of low profile power supplies are available in 15, 30, 60 or 100 watt.



Specifications
Alternate Part Number PSD-60 Series
Amp Rating 4.5 Amp
Phase Three Phase
All - Specific Ratings Class II, Double Isolation, UL508
Series PSD Series
Options DIN Rail Mount
All - Voltage 5VDC
Warranty 1 Year
Wattage N/A or See Spec
Weight 0.5

Features Include:

  • Input: 90-264V AC; 50/60HZ
  • DC Voltage: 5V
  • Output Voltage: 5V-48V DC
  • Rated Power: 60W max.
  • Ripple and Noise: 80mVp-p
  • 100% Full Load Burn-In
  • Overload Protection: >130%-200% Rated Output Power, Protection type: Hiccup Mode- recovers automatically after fault condition is removed
  • Over Voltage Protection: 110~145%, Protection Type: Clamp by Zener diode
  • Adjustable DC Voltage Output
  • Class II Isolation Level
  • Protection: UL62368-1 and CAN / CSA C22.2

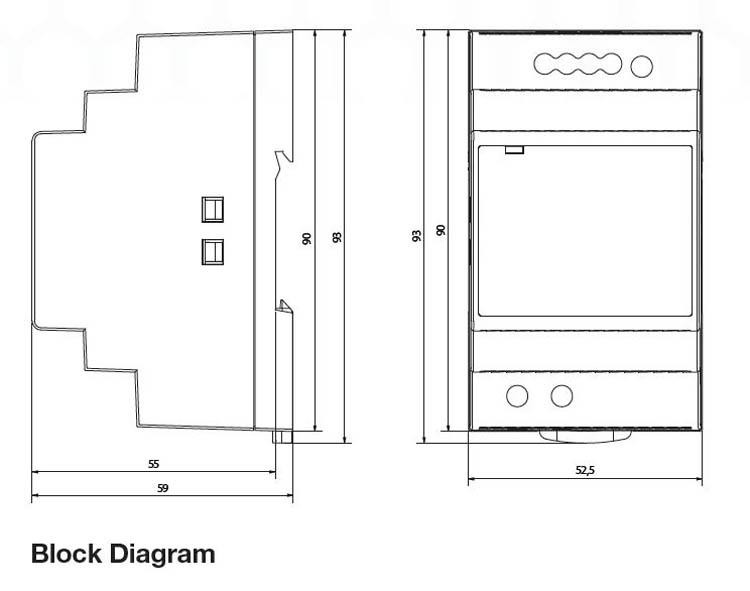

  • Size: 90 x 52.5 x 58mm
