PSD-3015
Alt: PSD-30 Series
$25.72

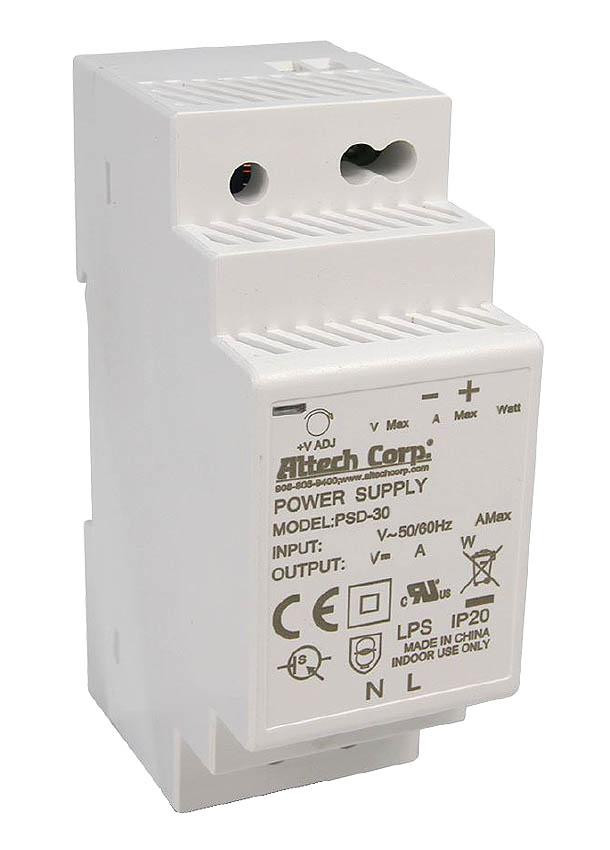

Power Supply, Low Profile, 89% Efficiency, 15VDC Output Voltage, 2 Amp, 30W, 120mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 35 x 58mm, Class II Isolation Level, PSD-30 Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Small Size, Universal Input, Class II Isolation and a 3 Year Warranty!
Our Altech PSD series of low profile power supplies are available in 15, 30, 60 or 100 watt.
Features Include:
- Input: 90-264V AC; 50/60HZ
- Output Voltage: 5V-48V DC
- DC Voltage: 15V
- Rated Current: 2A
- Rated Power: 30W
- Ripple and Noise: 120mVp-p
- 100% Full Load Burn-In
- Overload Protection: >130%-200% Rated Output Power, Protection type: Hiccup Mode- recovers automatically after fault condition is removed
- Over Voltage Protection: 110~145%, Protection Type: Clamp by Zener diode
- Adjustable DC Voltage Output
- Class II Isolation Level
- Protection: UL62368-1 and CAN / CSA C22.2

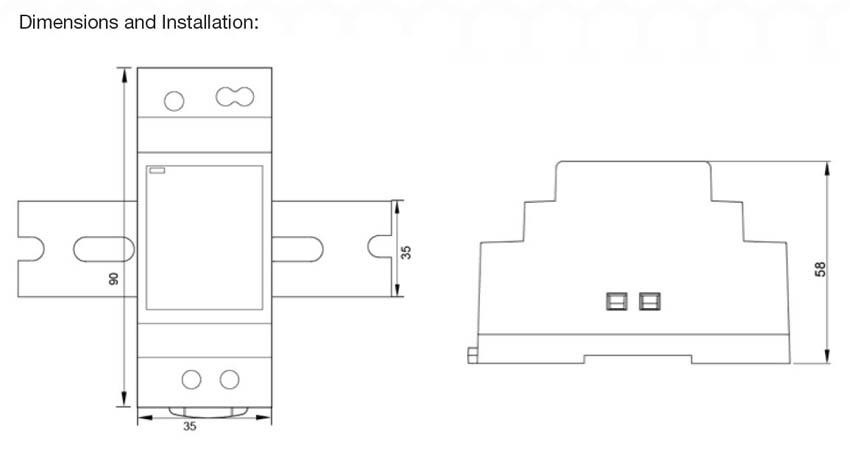

- Size: 90 x 35 x 58mm
Technical Information:
