Altech Corp.
PSD-3005
Power Supply, Low Profile, 82% Efficiency, 5VDC Voltage Output, 3 Amp, 15W, 80mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 35 x 58mm, Class II Isolation Level, PSD-30 Series
$27.76
PSD-3012
Alt: PSD-30 Series
$27.76
Power Supply, Low Profile, 88% Efficiency, 12VDC Output Voltage, 2 Amp, 24W, 120mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 35 x 58mm, Class II Isolation Level, PSD-30 Series
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Small Size, Universal Input, Class II Isolation and a 3 Year Warranty!
Our Altech PSD series of low profile power supplies are available in 15, 30, 60 or 100 watt.
Features Include:
- Input: 90-264V AC; 50/60HZ
- Output Voltage: 5V-48V DC
- DC Voltage: 12V
- Rated Current: 2A
- Rated Power: 24W
- Ripple and Noise: 120mVp-p
- 100% Full Load Burn-In
- Overload Protection: >130%-200% Rated Output Power, Protection type: Hiccup Mode- recovers automatically after fault condition is removed
- Over Voltage Protection: 110~145%, Protection Type: Clamp by Zener diode
- Adjustable DC Voltage Output
- Class II Isolation Level
- Protection: UL62368-1 and CAN / CSA C22.2

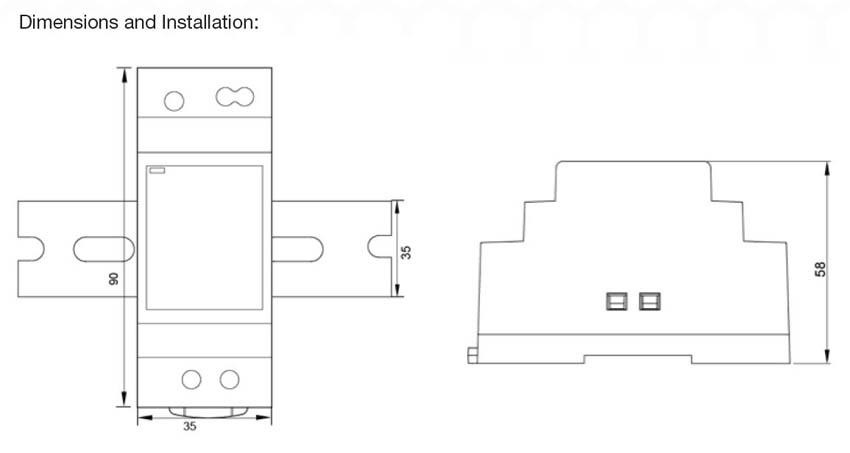

- Size: 90 x 35 x 58mm
Technical Information:
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Altech Corp.
PSD-6024

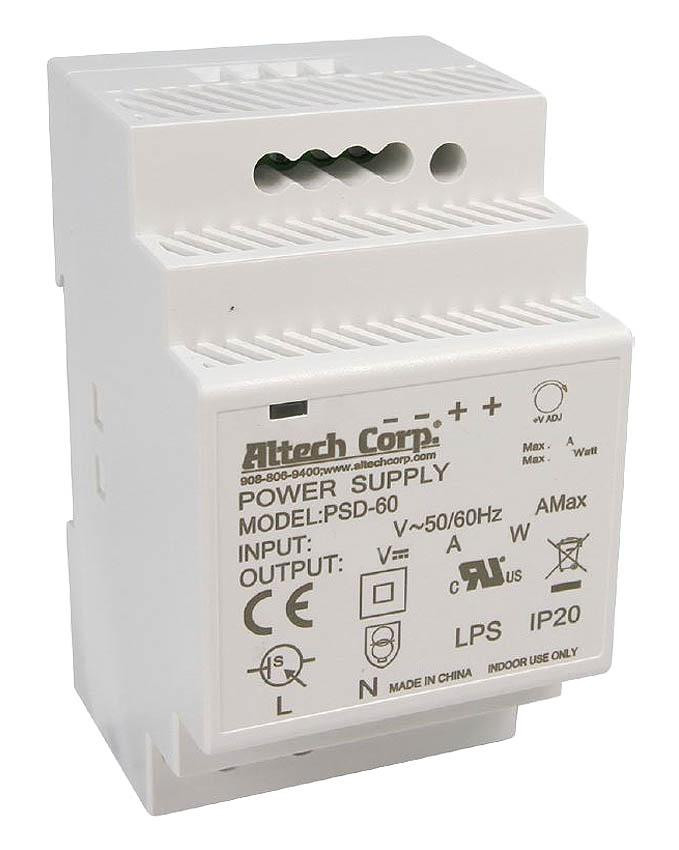

Power Supply, Low Profile, 90% Efficiency, 24VDC Output Voltage, 2.5 Amp, 60W, 150mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 52.5 x 58mm, Class II Isolation Level, PSD-60 Series
$31.80
Altech Corp.
PSD-1524
Power Supply, Low Profile, 86% Efficiency, 24VDC Voltage Output, 0.63 Amp, 15W, 150mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 18 x 58mm, Class II Isolation Level, PSD-15 Series
$18.50
Altech Corp.
PSD-6048
Power Supply, Low Profile, 91% Efficiency, 48VDC Output Voltage, 1.25 Amp, 60W, 240mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 52.5 x 58mm, Class II Isolation Level, PSD-60 Series
$32.94
Altech Corp.
PSD-3048
Power Supply, Low Profile, 90% Efficiency, 48VDC Output Voltage, 0.6 Amp, 29W, 240mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 35 x 58mm, Class II Isolation Level, PSD-30 Series
$25.68
Altech Corp.
PSD-6005
Power Supply, Low Profile, 85% Efficiency, 5VDC Voltage Output, 4.5 Amp, 23W, 80mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 52.5 x 58mm, Class II Isolation Level, PSD-60 Series
$37.04
Altech Corp.
PSD-10048
Power Supply, Low Profile, 90% Efficiency, 48VDC Voltage Output, 2.1 Amp, 100W, 240mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 70 x 58mm, Class II Isolation Level, PSD-100 Series
$50.03
Altech Corp.
PSD-3024
Power Supply, Low Profile, 89% Efficiency, 24VDC Output Voltage, 1 Amp, 24W, 150mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 35 x 58mm, Class II Isolation Level, PSD-30 Series
$27.76
Altech Corp.
PSD-6015
Power Supply, Low Profile, 89% Efficiency, 15VDC Output Voltage, 4 Amp, 60W, 120mVp-p, -20° to 50°, Full Load, Normal Operation, 90 x 52.5 x 58mm, Class II Isolation Level, PSD-60 Series
$37.04
