CFAM 30N1600/S14
Alt: 10119711, *Includes 6% Tariff from Manufacturer
$347.74

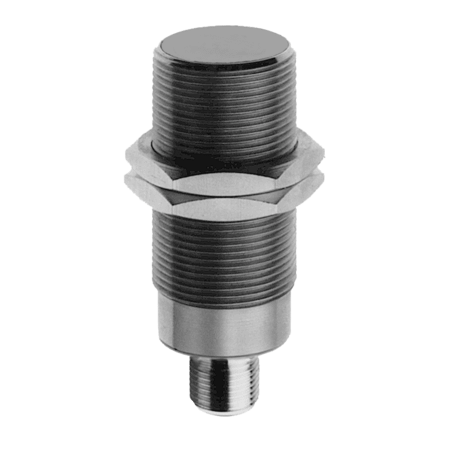

Capacitive Proximity Sensor, Ø30mm Cyl., 15mm Range, Flush, NPN NO, M12, IP65
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Proximity Sensor, 15mm, NO, M12, Flush cylindrical threaded, IP65
Specifications
Alternate Part Number
10119711, *Includes 6% Tariff from Manufacturer
Connection
See Spec
Material
See Spec
Normally Open/Closed
See Spec
NPN or PNP
NPN (Sink)
All - Specific Ratings
See Spec
Series
CFAM Series
Shielded/Unshielded
Shielded - Flush
Size
30mm
Type of Sensor
Capacitive
Warranty
3 Years
Weight
.5
Features Include:
- Nominal Sensing Distance: 15 mm
- Output Circuit: NPN make function (NO)
- Temperature Drift: ± 15 % (+10 - +70 °C)
- Sensitivity Adjustment: Potentiometer, 18 turn
- Connector M12
- Operating Temperature: -25 - 75 °C
- Protection Rating: IP 65
