Baumer
IGYX 12P17B3/L
Inductive Proximity Sensor, Ø12x40mm, Flush, 10-30VDC, 4mm Range, PNP NO, 2m Cable, IP67
$49.00
Available Now!
Available Now!
(1 in stock)

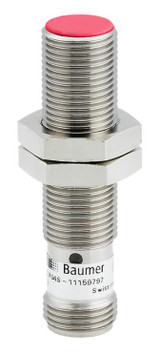

IGYX 12P17B3/S14L
Alt: 11084740
$45.00
Inductive Proximity Sensor, Ø12x50mm, Flush, 10-30VDC, 4mm Range, PNP NO, M12 Connector, IP67, Generally Available to Ship in 3 to 5 Days
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Prox. M12x1.0, Shielded,PNP,NO,M12,4mm,50mm
Features Include:
- Mounting Type: Shielded
- Nominal Sensing Distance Sn: 4 mm
- Assured Sensing Distance Sa: 3.2 mm
- Voltage Supply Range +Vs: 10 - 30 VDC
- Current Consumption Max. (no load): 15 mA
- Output Current: < 200 mA
- Hysteresis: 3 - 20 % of Sr
- Switching Frequency: < 1.5 kHz
- Output Circuit: NPN make function (NO)
- Operating Temperature: -25 - 765 °C
- Protection Rating: IP 67
Temperature Drift:
- -± 10 % of Sr (0 - +60 °C)
Technical Information:
