Weg
CWBS110-33-30E04

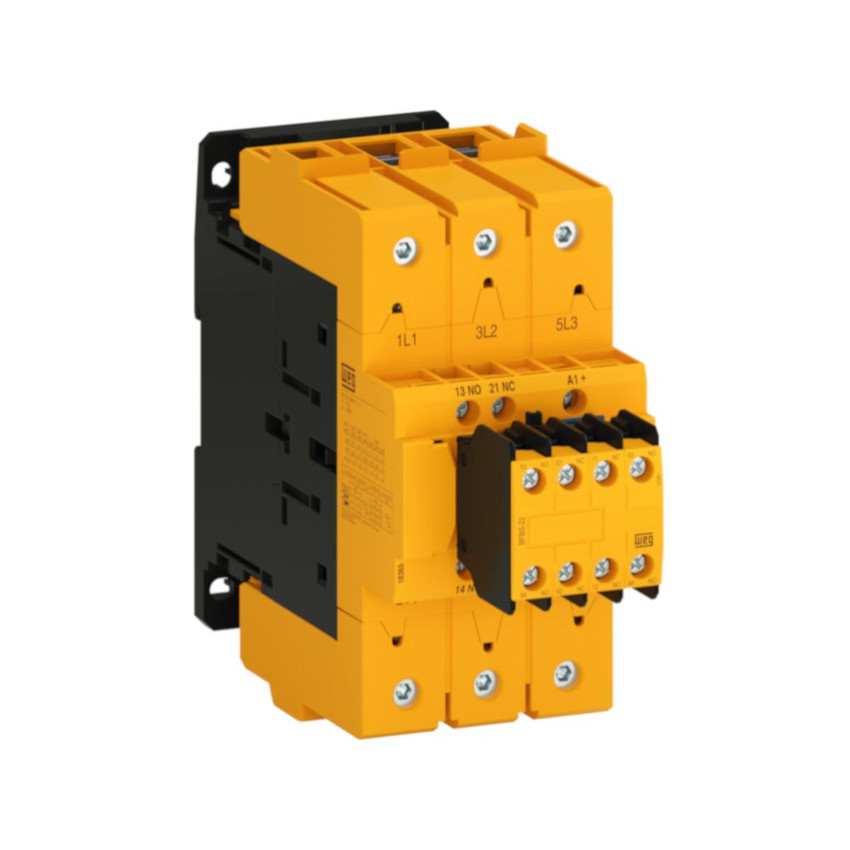

Safety Contactor, 110 Amp (110A), 3NO, 24-60V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
$361.92
CWBS125-33-30E04
Alt: 16220987
$434.85
Safety Contactor, 125 Amp (125A), 3NO, 24-60V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
- Weight:
- 3.82 LBS
- Minimum Purchase:
- 1 unit
Description
The 95 – 125A rated three-pole contactors are available with electronic AC/DC coils featuring extended voltage ranges of 24 – 60V or 110 – 255V. The existing 24 VAC and 120 VAC coil options are also available for the 95A and 110A configurations.
Features of our WEG CWBS safety contactor include:
- Factory installed and tested auxiliary contact block requires a tool to remove and offers protection against inadvertent operation
- Distinct safety yellow color allows easy identification on panels and equipment
- Easy installation onto 35mm DIN rail or surface mounted with screws
- Compatible with the CWB range of accessories, ready to accommodate a wide range of industrial applications
- Mechanically linked contacts (IEC/EN 60947-5-1) and mirror contacts (IEC/EN 60947-4-1) which allow proper operation of safety circuits and equipment
WEG has expanded their WEG CWBS line of safety contactors for safety applications and equipment. In addition to the existing 9A to 80A product line, we now offer current ratings of 95A, 110A, and 125A.
The 95 – 125A rated three-pole contactors are available with electronic AC/DC coils featuring extended voltage ranges of 24 – 60V or 110 – 255V. The existing 24 VAC and 120 VAC coil options are also available for the 95A and 110A configurations.
Specifications
Alternate Part Number
16220987
Warranty
18 Months
Width
2.834" (72mm)
Series
CWBS Series
Additional Documents
Weg CWBS125-33-30E04 Install Instructions
Weight
3.82
Brochure
Weg CWBS Brochure
Height
5.87" (149mm)
Amp Rating
125 Amp
Type of Product
Safety Contactor
All - Voltage
24 to 60VAC/DC
Product Data Sheet
Weg CWBS125-33-30E04 Datasheet
Length/Depth
7.263" (184.5mm)
Full Catalog
Weg CWBS Catalog
