Weg
CWBS110-33-30D02

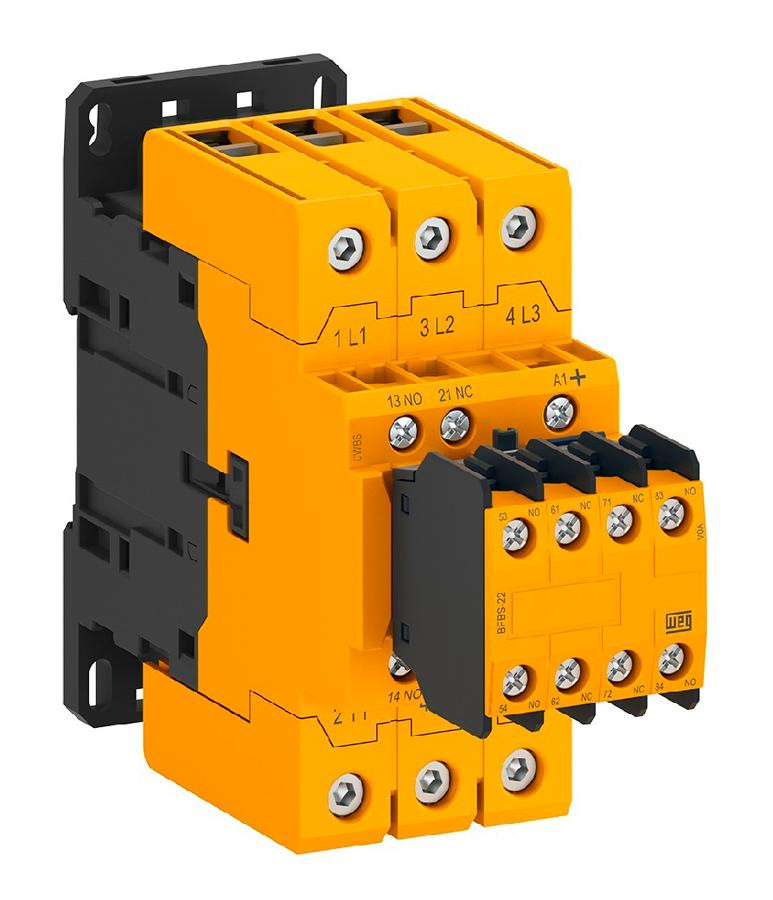

Safety Contactor, 110 Amp (110A), 3NO, 24V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
$290.55
CWBS110-33-30D15
Alt: 16220833
$290.55
Safety Contactor, 110 Amp (110A), 3NO, 120V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
- Weight:
- 3.72 LBS
- Minimum Purchase:
- 1 unit
Description
The 95 – 125A rated three-pole contactors are available with electronic AC/DC coils featuring extended voltage ranges of 24 – 60V or 110 – 255V. The existing 24 VAC and 120 VAC coil options are also available for the 95A and 110A configurations.
Features of our WEG CWBS safety contactor include:
- Factory installed and tested auxiliary contact block requires a tool to remove and offers protection against inadvertent operation
- Distinct safety yellow color allows easy identification on panels and equipment
- Easy installation onto 35mm DIN rail or surface mounted with screws
- Compatible with the CWB range of accessories, ready to accommodate a wide range of industrial applications
- Mechanically linked contacts (IEC/EN 60947-5-1) and mirror contacts (IEC/EN 60947-4-1) which allow proper operation of safety circuits and equipment
WEG has expanded their WEG CWBS line of safety contactors for safety applications and equipment. In addition to the existing 9A to 80A product line, we now offer current ratings of 95A, 110A, and 125A.
The 95 – 125A rated three-pole contactors are available with electronic AC/DC coils featuring extended voltage ranges of 24 – 60V or 110 – 255V. The existing 24 VAC and 120 VAC coil options are also available for the 95A and 110A configurations.
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
CWBS110-33-30E65
Safety Contactor, 110 Amp (110A), 3NO, 110-255V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
$361.92
Weg
CWBS110-33-30E04
Safety Contactor, 110 Amp (110A), 3NO, 24-60V, 50/60Hz, Screw Terminal Connection, 5.87 x 2.834 x 7.263" (149 x 72 x 184.5mm) HWD, IP10 (Main Circuit), IP20 (Control Circuit), CWBS Series
$361.92
