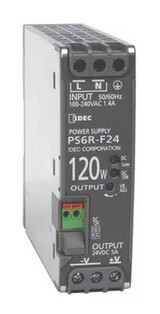

PS6R-F24
$179.60
Power Supply, Expandable, 120 Watt, 24VDC, 5 Amp, UL508, 100-240VAC Input Voltage (Voltage Range: 85-264VAC/ 110-350VDC), UL Listed for Class I Div. 2 Hazardous Locations
- Weight:
- 1.50 LBS
- Minimum Purchase:
- 1 unit
Description
Meet the PS6R series. The first DIN rail-mounted industrial power supplies that expand to provide multiple output voltages from a single unit.
These compact units pack big performance into remarkably small spaces. Add a 10W DC-DC converter unit or add two branch terminals —without sacrificing efficiency or performance.
Key Features:
- 93% efficiency
- Power Range: 120W, 240W, 480W
- Plug-in output modules for additional output voltages
- Plug-in branch terminal module for additional terminals
- Input voltage: 100 to 240V AC (voltage range:85 to 264V AC/110 to 350V DC)
- Up to 70C/158F operating temperature
- DC low LED indicator and output contact
- The terminals are captive spring-up screws. Ring or fork terminals can be used.
- Finger-safe construction prevents electric shocks
- Panel mount bracket and side-mount panel mounting bracket. Can be attached to a DIN rail or directly to a panel surface
- RoHS compliant
- UL Listed for Class I, Div. 2 Hazardous Locations
- Meets SEMI F47 Sag Immunity
- ABS certified for Maritime use
Marshall Wolf Automation is your authorized IDEC distributor!
Specifications
Full Catalog
IDEC PS6R Power Supply Catalog
Product Data Sheet
IDEC PS6R Power Supply Datasheet
Additional Documents
IDEC PS6R Instructions
Series
PS6R Series
Brochure
IDEC Power Supply Brochure
All - Voltage
24VDC
Phase
Single Phase
Wattage
120 Watt
All - Specific Ratings
Class 1, Div. 2
Amp Rating
5 Amp
Warranty
5 Years
Weight
1.5
