LP-A070-T9D7-C5T
Autonics

LP-A070-T9D7-C5T

Alt: A1350000064

$561.00

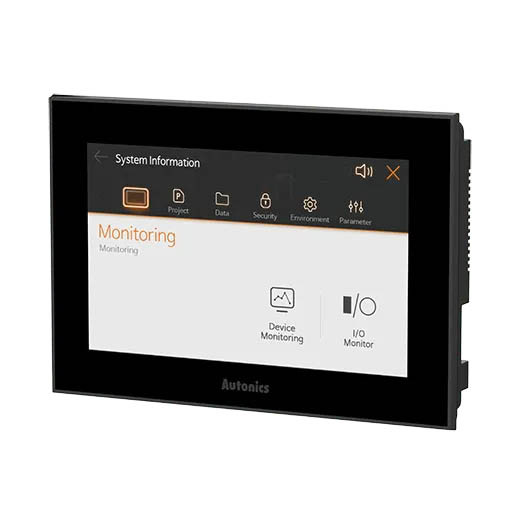

Advance 7" Color TFT Color LCD Logic Panel, 24VDC, 800 x 480 Resolution, 64MB, RS232S (2 Ports), USB Host, USB Device, Ethernet, IP65, 154.4 x 93.44mm Display, All-In-One Touch Panel with PLC, HMI, and I/O Module Functions

Weight:
1.65 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
All-in-one device features functions of PLC, HMI, and I/O modules with 16 input and 16 output contact points!
Description
All-in-one touch panel with PLC, HMI and I/O module functions!
  • 7", 24VDC, IP65 (front panel)
  • All-in-one device including functions of PLC, HMI, and I/O modules
  • Horizontal/vertical installation
  • You can connect your PC to the LP-A using serial interface (RS232C), RS422/485, Ethernet, USB interface
  • For downloading and uploading project files between the HMI and your PC you can connect using serial communication cable, LAN cable or USB mini cable
  • The internal input modules are NPN open collector (sourcing type)
  • The internal output modules are NPN open collector (sinking type)
  • 16 input and 16 output points provided
  • Device monitoring of connected device possible without screen data
  • 7-inch TFT LCD True Color display capable up to 16,777,216 color variations
  • Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
  • To program the LP-A, there are two different software applications, atDesigner and atLogic, both are free to download from Autonics.com
