Autonics

LP-A070-T9D7-C5R

Name: LP-A070-T9D7-C5R
Brand: Autonics
SKU: LP-A070-T9D7-C5R
Price: 561 USD
Availability: InStock

Alt: A1350000063

$561.00

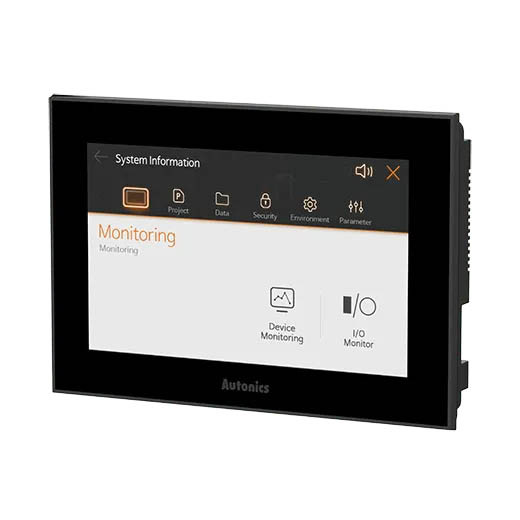

Advance 7" Color TFT Color LCD Logic Panel, 24VDC, 800 x 480 Resolution, 64MB, RS232S (2 Ports), USB Host, USB Device, Ethernet, IP65, 154.4 x 93.44mm Display, All-In-One Touch Panel with PLC, HMI, and I/O Module Functions

SKU:: LP-A070-T9D7-C5R
Weight:: 1.65 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

All-in-one touch panel with PLC, HMI and I/O module functions!

7", 24VDC, IP65 (front panel)
All-in-one device including functions of PLC, HMI, and I/O modules
Horizontal/vertical installation
You can connect your PC to the LP-A using serial interface (RS232C), RS422/485, Ethernet, USB interface
For downloading and uploading project files between the HMI and your PC you can connect using serial communication cable, LAN cable or USB mini cable
The internal input modules are NPN open collector (sourcing type)
The internal output modules are NPN open collector (sinking type)
16 input and 16 output points provided
Device monitoring of connected device possible without screen data
7-inch TFT LCD True Color display capable up to 16,777,216 color variations
Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
To program the LP-A, there are two different software applications, atDesigner and atLogic, both are free to download from Autonics.com
