$373.00
LP-A070-T9D6-C5T
Alt: A1350000062
$561.00

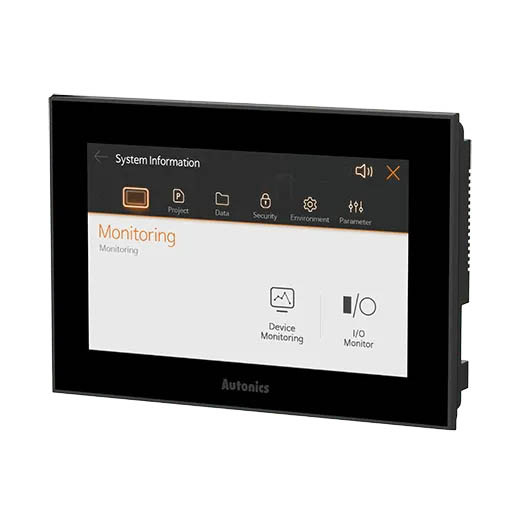

Advance 7" Color TFT Color LCD Logic Panel, 24VDC, 800 x 480 Resolution, 64MB, RS232S, RS422, USB Host, USB Device, Ethernet, IP65, 154.4 x 93.44mm Display, All-In-One Touch Panel with PLC, HMI, and I/O Module Functions
- Weight:
- 1.65 LBS
- Minimum Purchase:
- 1 unit
Description
All-in-one touch panel with PLC, HMI and I/O module functions!
- 7", 24VDC, IP65 (front panel)
- All-in-one device including functions of PLC, HMI, and I/O modules
- Horizontal/vertical installation
- You can connect your PC to the LP-A using serial interface (RS232C), RS422/485, Ethernet, USB interface
- For downloading and uploading project files between the HMI and your PC you can connect using serial communication cable, LAN cable or USB mini cable
- The internal input modules are NPN open collector (sourcing type)
- The internal output modules are NPN open collector (sinking type)
- 16 input and 16 output points provided
- Device monitoring of connected device possible without screen data
- 7-inch TFT LCD True Color display capable up to 16,777,216 color variations
- Resistive touchscreen allows operation with bare hands, gloved fingers, or stylus
- To program the LP-A, there are two different software applications, atDesigner and atLogic, both are free to download from Autonics.com
