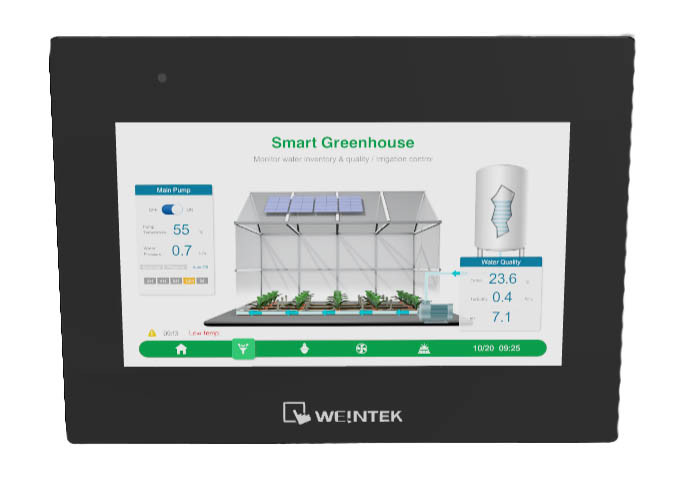

CMT3072XP
Alt: CMTX Series - Advanced HMI
HMI, 7" WVA, LCD (LED Backlight), 24VDC, 1024 x 600, Quad-core RISC, 4GB Flash/1GB RAM Memory, 10/100 Base-T x 2 Ethernet, COM2 and COM3 RS-485 2W Supports MPI 187.5K (one at a time), NEMA 4/IP66 Front Panel, 200.3 x 146.3 x 36.9mm (WHD)
- Weight:
- 2.00 LBS
- Minimum Purchase:
- 1 unit
Since the debut of capacitive HMI, Weintek has rolled out models in sizes 10.1", 15", and 15.6" to address market demands. To further expand this product line, Weintek announced the release of the new 7" capacitive HMI: cMT3072XP, to complement the current cMT X Series offerings.
Touchscreen Upgrade! High Resolution and Multi-Touch
The cMT3072XP features a sleek design with a 1024x600 high-resolution display that supports 85° all-around wide viewing angle. Its capacitive touch screen makes for intuitive and responsive operation, supporting multi-touch gestures like smartphones. Internally, cMT3072XP is equipped with a powerful quad-core CPU, 4GB Flash memory, and 1GB RAM, plus a full suite of connectivity options that include dual Ethernet ports and all serial connections (RS232 2W/4W, RS485 2W/4W, SIEMENS MPI, CAN Bus). Just like its cMT X peers, cMT3072X’s high-level specs plays an important role in supporting its ability to delivery exceptional user experience.
Brand New Experience! Software Upgrade
Categorized as an Advanced cMT X HMI, the cMT3072XP offers a multitude of software support, especially in capabilities related to data integration and smart monitoring.
It comes with a built-in OPC UA server, MQTT communication protocol, and SQL database server connectivity to facilitate transmission of on-site data. For smart monitoring, it provides tools such as VNC monitoring, WebView web monitoring, cMT Viewer app monitoring, and Weincloud remote monitoring. With a solid support in software, the cMT3072XP can be a powerful data integration solution, serving on-site and remote operations alike.
The cMT3072XP will be the first to introduce the brand-new system settings user interface. This new interface, redesigned with consistent elements, revamped menu and improved feedbacks, is bound to elevate the user experience significantly. Additionally, the new interface offers two themes, light and dark, providing users with the flexibility to choose one that best suits the surroundings.
