SFLA14-87
Autonics

SFLA14-87

Alt: SFLA Series

$2,952.00

Safety Light Curtain, 14mm (Finger) Resolution, 87 Optical Axes, 792mm Field Height, Through Beam, Infrared LED 855nm, Short 0.2-5m/Long 0.2-10m Mode Sensing, 9mm Optical Axis Pitch, 24VDC, Max. 4 Sets, Advanced, IP65/IP67/IP67G/IP69K

Weight:
5.61 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
The SFLA series are Type 4 light curtains that can be used for difficult applications, they offer a high level of safety!
Description

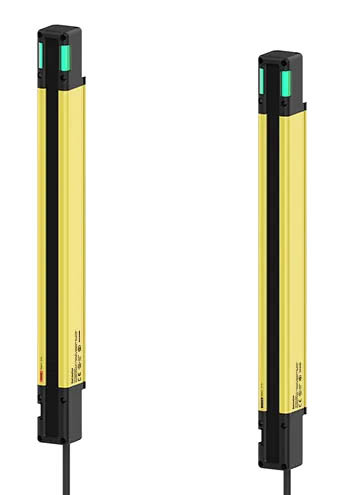

Autonics SFLA series are safety light curtains that offer finger, hand or hand-body detection as well as safety functions.

These light curtains can operate in tough applications that include low temperature, oil and high pressure. The dedicated software allows real-time status monitoring user settings such as automatic muting/blanking area functions.
  • International safety standard and regulation compliance
    • Type 4 ESPE (AOPD), SIL3, SIL CL3, Category 4, PL e, CE, UL Listed, S-Mark, KCs (industrial robot protection device)
  • Available in 3 detection type models (finger, hand, hand-body detection) and various protection height models
  • Various safety-related functions & self-diagnosis functions
  • Various status readings with 7-segment display and status indicators
  • Easy beam adjustment with top and bottom beam indicators
  • Upper OSSD indicator to check operation status and muting status (separate muting lamp not required)
  • 4 non-safety outputs for various applications (2 AUX, 2 lamp)
  • Stable operation in diverse conditions including low temperature, oil, high pressure water
    • Protection rating: IP65, IP67 (IEC standard), IP67G (JEM standard), IP69K (DIN standard)
    • Ambient temperature: -30 to 60℃
  • Additional functions and configuration available with dedicated software
