A3T800
$511.31

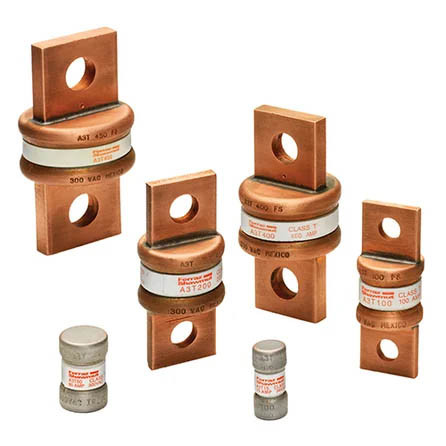

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 800A Blade Amp-Trap®, 2.08" Diameter x 3.38" Length
- Weight:
- 0.80 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.
Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Key Features:
-
Extremely current-limiting for low peak let-thru current
-
Unique dimensions prevent replacement by other fuse classes
-
Blade-stamped catalog numbers for permanent identification
-
Small physical size for greater design flexibility
Applications:
-
Load centers
-
Panelboards
-
Switchboards
-
Circuit breakers
-
Metering centers
Specifications
Warranty
1 Year
Series
A3T Series
Length/Depth
3.38"
Width
2.08"
Weight
0.8
Full Catalog
Mersen Electrical Power Full Catalog
Product Data Sheet
Mersen A3T & A6T Series Power Fuse Datasheet
Amp Rating
800 Amp
Additional Documents
Mersen A3T 700-800A Drawing
Fuse Class
Class T
Type of Product
Fuses
