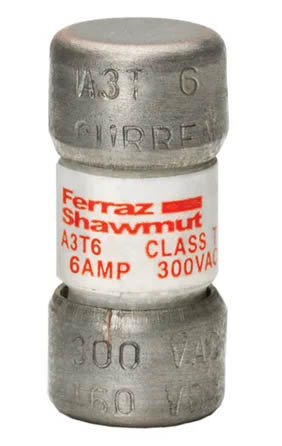

A3T6
Mersen

A3T6

Alt: Sold in Increments of 10 Pieces, Price per Piece

$26.69

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 6A Ferrule Amp-Trap®, 0.41" Diameter x 0.88" Length, Minimum Order 10 Pieces (10 per Pack), Price per Piece

Weight:
0.02 LBS
Minimum Purchase:
10 units
Adding to cart… The item has been added
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.

Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.

These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.

Key Features:

  • Extremely current-limiting for low peak let-thru current

  • Unique dimensions prevent replacement by other fuse classes

  • Blade-stamped catalog numbers for permanent identification

  • Small physical size for greater design flexibility

Applications:

  • Load centers

  • Panelboards

  • Switchboards

  • Circuit breakers

  • Metering centers


Specifications
Alternate Part Number Sold in Increments of 10 Pieces, Price per Piece
Warranty 1 Year
Length/Depth 0.88"

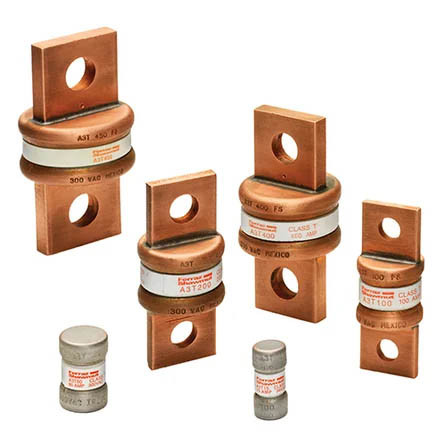

Series A3T Series
Weight 0.02
Width 0.41"
Full Catalog Mersen Electrical Power Full Catalog
Product Data Sheet Mersen A3T & A6T Series Power Fuse Datasheet
Additional Documents Mersen A3T 1-30A Drawing
Amp Rating 6 Amp
Fuse Class Class T
Type of Product Fuses

Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Add Selection to Cart

Mersen

A3T600

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 600A Blade Amp-Trap®, 1.62" Diameter x 3.06" Length

$150.40

Mersen

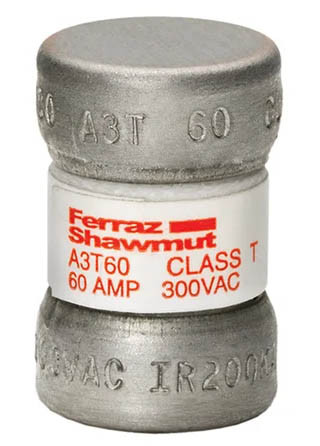

A3T60
