Mersen
A3T500
Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 500A Blade Amp-Trap®, 1.62" Diameter x 3.06" Length
$158.11
A3T50
Alt: Sold in Increments of 10 Pieces, Price per Piece
$25.41

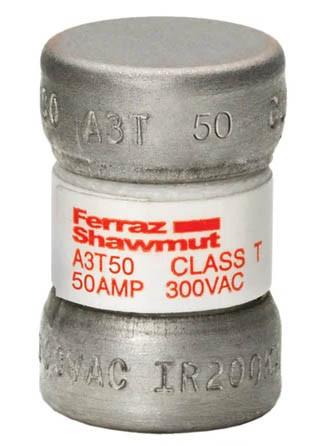

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 50A Ferrule Amp-Trap®, 0.56" Diameter x 0.88" Length, Minimum Order 10 Pieces (10 per Pack), Price per Piece
- Weight:
- 0.02 LBS
- Minimum Purchase:
- 10 units
Description

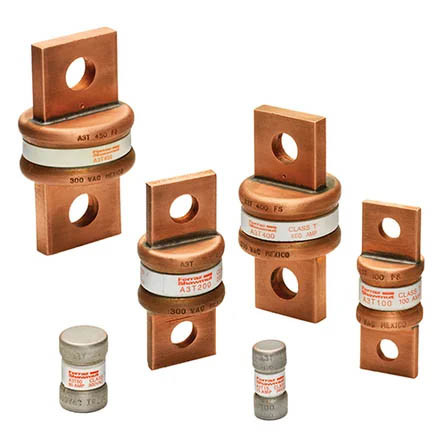

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.
Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Key Features:
-
Extremely current-limiting for low peak let-thru current
-
Unique dimensions prevent replacement by other fuse classes
-
Blade-stamped catalog numbers for permanent identification
-
Small physical size for greater design flexibility
Applications:
-
Load centers
-
Panelboards
-
Switchboards
-
Circuit breakers
-
Metering centers
Specifications
Alternate Part Number
Sold in Increments of 10 Pieces, Price per Piece
Warranty
1 Year
Width
0.56"
Length/Depth
0.88"
Series
A3T Series
Weight
0.02
Full Catalog
Mersen Electrical Power Full Catalog
Product Data Sheet
Mersen A3T & A6T Series Power Fuse Datasheet
Additional Documents
Mersen A3T 35-60A Drawing
Amp Rating
50 Amp
Fuse Class
Class T
Type of Product
Fuses
