A3T400
$89.75

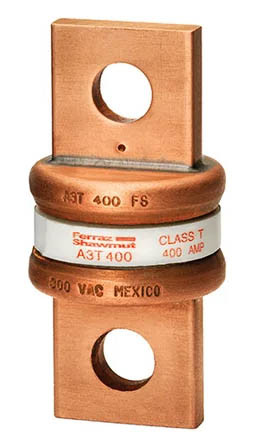

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 400A Blade Amp-Trap®, 1.33" Diameter x 2.75" Length
- Weight:
- 0.28 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description

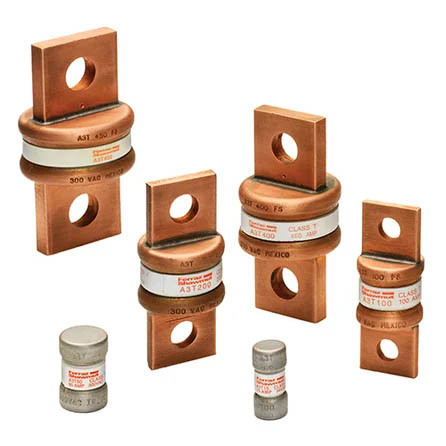

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.
Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Key Features:
-
Extremely current-limiting for low peak let-thru current
-
Unique dimensions prevent replacement by other fuse classes
-
Blade-stamped catalog numbers for permanent identification
-
Small physical size for greater design flexibility
Applications:
-
Load centers
-
Panelboards
-
Switchboards
-
Circuit breakers
-
Metering centers
Specifications
Warranty
1 Year
Series
A3T Series
Weight
0.28
Width
1.33"
Length/Depth
2.75"
Product Data Sheet
Mersen A3T & A6T Series Power Fuse Datasheet
Amp Rating
400 Amp
Full Catalog
Mersen Electrical Power Full Catalog
Additional Documents
Mersen A3T 225-400A Drawing
Fuse Class
Class T
Type of Product
Fuses
