A3T300
$109.91

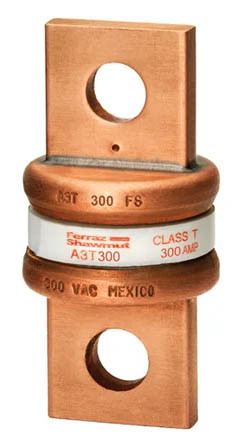

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 300A Blade Amp-Trap®, 1.33" Diameter x 2.75" Length
- Weight:
- 0.28 LBS
- Minimum Purchase:
- 1 unit
Description

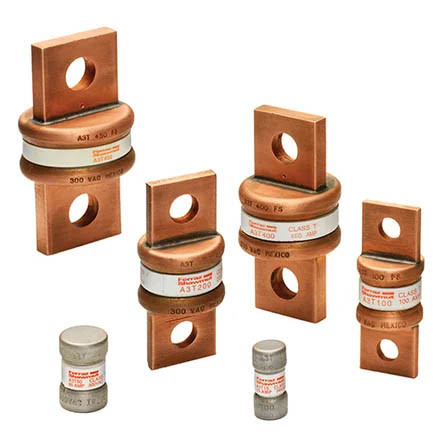

Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.
Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Key features:
- Extremely current-limiting for low peak let-thru current
- Unique dimensions prevent replacement by other fuse classes
- Blade-stamped catalog numbers for permanent identification
- Small physical size for greater design flexibility
- Available from 1 to 1200 Amp, UL Category Code JDDZ, 50/60Hz, Class T, Fast-Acting
Applications:
- Load centers
- Panelboards
- Switchboards
- Circuit breakers
- Metering centers
