A3T150
$47.01

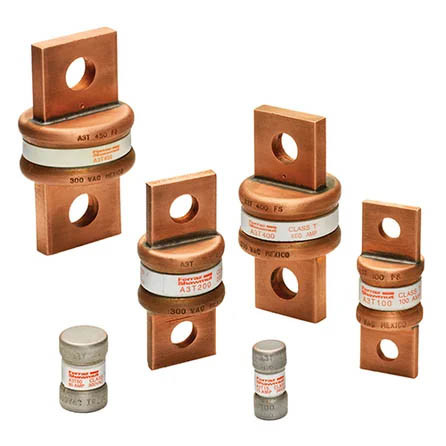

Fuse A3T - Class T - Fast-Acting 300VAC 160VDC 150A Blade Amp-Trap®, 1.06" Diameter x 2.44" Length
- Weight:
- 0.17 LBS
- Minimum Purchase:
- 1 unit
Description
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size.
Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability.
These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Key Features:
-
Extremely current-limiting for low peak let-thru current
-
Unique dimensions prevent replacement by other fuse classes
-
Blade-stamped catalog numbers for permanent identification
-
Small physical size for greater design flexibility
Applications:
-
Load centers
-
Panelboards
-
Switchboards
-
Circuit breakers
-
Metering centers
