CFW900C80P0T2DB20Y2B
Weg

CFW900C80P0T2DB20Y2B

Alt: 15414331

$4,544.00

VFD, 25hp 70 Amp (70A) HD / 30hp 80 Amp (80A) ND, 200-240V, Three Phase, Graphic LCD Display Keypad (HMI), RFI Filter, Dynamic Braking, STO (Safe Torque Off), SS1-t, Functional Safety Stop, IP20

Weight:
45.20 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Meets SIL3 & Ple/Category 4 requirements with built-in Safe Torque Off (STO) and Safe Stop (SS1-t) functions
Description

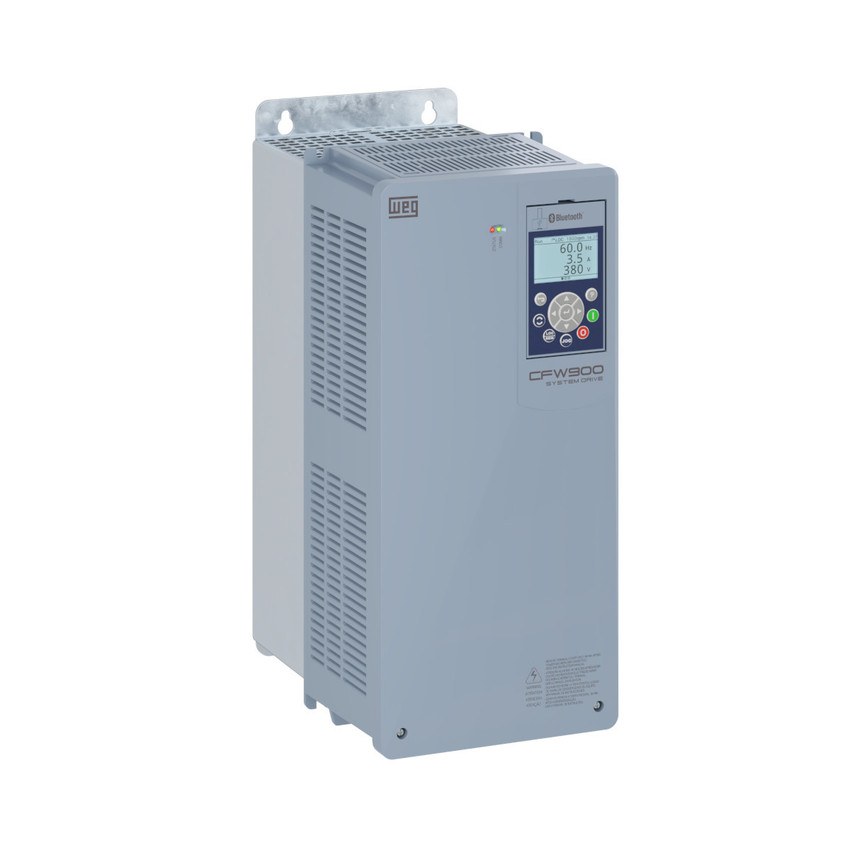

The Weg CFW900 is a high performance system drive that is designed to increase your levels of efficiency and control. The CFW900 is a state-of-the-art vfd that sets a new standard in high-tech motor control and protection.

Key Features of the CFW900 Series:

  • Powerful Performance

  • High-temperature Resilience: Featuring built-in Intelligent thermal management, the CFW900 thrives in challenging environments with a rating of up to 50°C ambient temperature without derating.

  • PWM Modulation for Long Cables: A specific PWM modulation function allows operation with long cables (up to 200m) without an output filter.

  • Functional Safety Features: Meets SIL3 & Ple/Category 4 requirements with built-in Safe Torque Off (STO) and Safe Stop (SS1-t) functions.

  • Integrated Ethernet Communication: Seamless connectivity with dual Ethernet ports and RS485 (Modbus RTU) port.

  • Built-In RFI filter: Reduce Electromagnetic interference with an integrated RFI filter.

  • Intuitive Control Interface: Modern Text/Graphic Keypad with Bluetooth, USB port, RTC & help function; displays up to 27 parameters.

  • Embedded IoT Connectivity: Embrace the future with IoT-ready capabilities using MQTT protocol, enabling remote access for proactive maintenance and enhanced overall process efficiency.

  • Advanced SoftPLC: Enjoy built-in PLC functionalities for enhanced control with WEG’s WPS software at no cost.

  • Harmonic Reduction: Built-in Dual DC bus chokes minimize harmonics, ensuring cleaner power for your operations.

  • Expandable Options: 4 independent slots, expandable to 7, accommodate plug-and-play I/O expansion & communication modules.

  • Versatile Built-in I/O: 6 x Digital Inputs, 2 x Digital outputs, 3 x Relay outputs, 2 x Analog Inputs, and 2 x Analog outputs provide flexibility for various applications.
