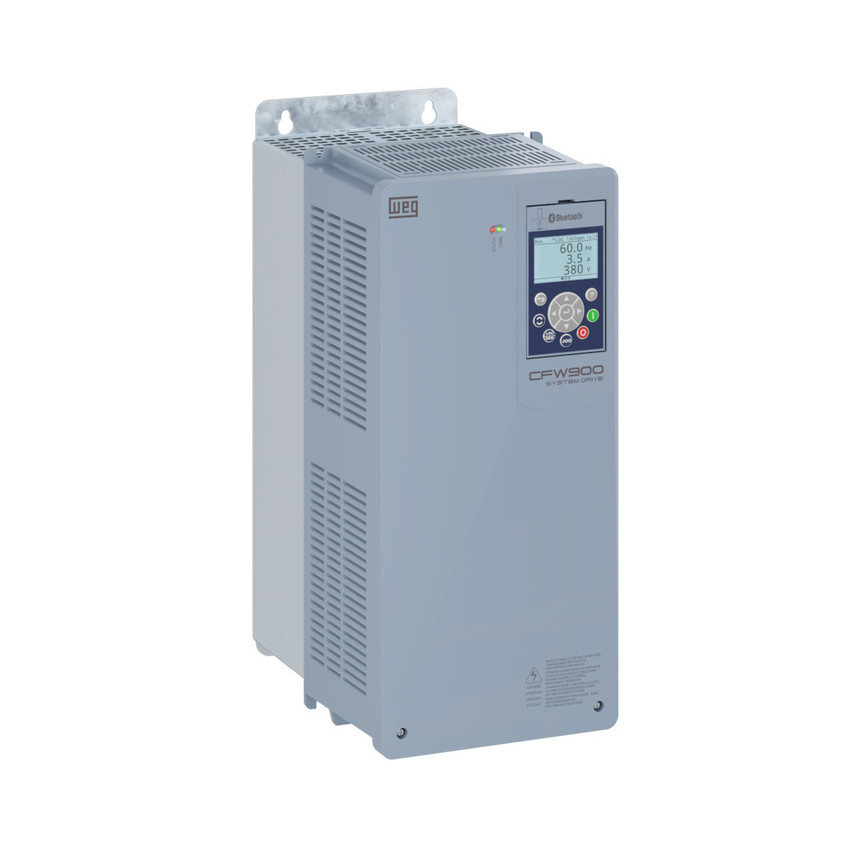

CFW900C70P0T2DB20Y2B

The Weg CFW900 is a high performance system drive that is designed to increase your levels of efficiency and control. The CFW900 is a state-of-the-art vfd that sets a new standard in high-tech motor control and protection.

Key Features of the CFW900 Series:

• Powerful Performance

• High-temperature Resilience: Featuring built-in Intelligent thermal management, the CFW900 thrives in challenging environments with a rating of up to 50°C ambient temperature without derating.

• PWM Modulation for Long Cables: A specific PWM modulation function allows operation with long cables (up to 200m) without an output filter.

• Functional Safety Features: Meets SIL3 & Ple/Category 4 requirements with built-in Safe Torque Off (STO) and Safe Stop (SS1-t) functions.

• Integrated Ethernet Communication: Seamless connectivity with dual Ethernet ports and RS485 (Modbus RTU) port.

• Built-In RFI filter: Reduce Electromagnetic interference with an integrated RFI filter.

• Intuitive Control Interface: Modern Text/Graphic Keypad with Bluetooth, USB port, RTC & help function; displays up to 27 parameters.

• Embedded IoT Connectivity: Embrace the future with IoT-ready capabilities using MQTT protocol, enabling remote access for proactive maintenance and enhanced overall process efficiency.

• Advanced SoftPLC: Enjoy built-in PLC functionalities for enhanced control with WEG’s WPS software at no cost.

• Harmonic Reduction: Built-in Dual DC bus chokes minimize harmonics, ensuring cleaner power for your operations.

• Expandable Options: 4 independent slots, expandable to 7, accommodate plug-and-play I/O expansion & communication modules.

• Versatile Built-in I/O: 6 x Digital Inputs, 2 x Digital outputs, 3 x Relay outputs, 2 x Analog Inputs, and 2 x Analog outputs provide flexibility for various applications.
