CFW320C08P3T4NB20
Alt: 17452872
VFD, 5hp, 380-480VAC, Three Phase, 10 Amp, (10A), Frame C, IP20, No Internal Braking, Built-in HMI with Numeric LCD Display
- Weight:
- 4.30 LBS
- Minimum Purchase:
- 1 unit

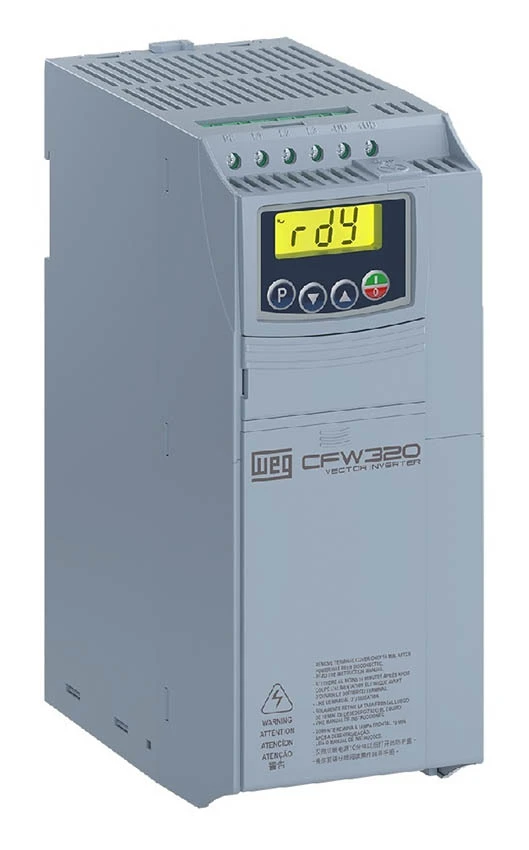

Our WEG CFW320 is a variable speed drive for three-phase induction motors that gives you a combination of precision, flexibility, and cost-effectiveness.
With a compact size & contactor-like installation (top-in, bottom-out), it is ideal for applications on machines or equipment.
Features of the CFW320 Series:
- New Ratings for 3 phase/460VAC: 1.1…14.0 A (0.5 to 10HP) @ 3/460 Vac.
- Same current range as the existing CFW300 drives:
- 1.6…6.0 A (0.25 to 2HP) @ 230Vac with 1/110-127 Vac Supply Voltage.
- 1.6…15.2 A (0.25 to 5HP) @ 230 Vac with 1-Ph or 3-Ph, 230Vac Supply voltage
- Drop in mechanical replacement (ratings to ratings) for the CFW300 drives
- Meets the UL 61800-5-1 standard
- Built-in HMI, SotfPLC (PLC functionalities) & conformal-coated circuit board
- Control modes: Scalar (V/F) & Voltage Vector WEG (VVW) Control
- On-board 4 Digital Inputs, 1 Analog Input, and 1 Relay output
- 2 independent slots for function expansion – Slot#1 (upper Slot) for Communication and Slot #2 (lower Slot) for I/O expansion
- Degree of Protection: IP20
- Fan easily removable
- RFI Filter accessory - CFW320-KFA/B/C options
- Flash Memory Module accessory - MMF-uDrives
This series is great for all types of applications including opening/closing gates, single phase power supply, fans, centrifugal pumps, belts, mixers, process dosing pumps and general machine and equipment.
