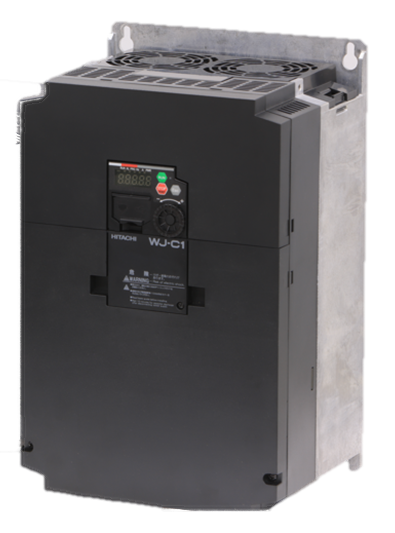

C1-055LFU2
Alt: Replacement for WJ200-055LF
$620.72
VFD, 200V, Three Phase, 7.5hp 25 Amp (25A) CT / 10hp 30 Amp (30A) VT, Sensorless Vector Control, High Starting Torque, IP20, C1 Series
- Weight:
- 13.00 LBS
- Minimum Purchase:
- 1 unit
Description
Designed for excellent performance and user friendliness -
The WJ-C1 Series ranges from 100-400VAC and single phase input to three phase output. The WJ-C1 Series comes with an integrated auto-tuning function for easy sensorless vector control that realizes high starting torque of 200% or greater, suitable for a variety of applications.
Features and Benefits
- High Starting Torque and dramatically improved speed stability with advanced sensorless vector control
- New and more effective trip avoidance functions, safe-stop function
- Full Closed Loop Vector Control capable
- Advanced notification included for control life assessment
- Simplified Auto-tuning procedure (SLV)
- Can be used for heavy and normal duty
- Easy to operate programming dial for quick direct programming
- Password function to prevent parameters or to hide some of all parameters
- Intuitive Setup and operation via standard integral keypad, optional enhanced keypad or PC software
- User-changed parameter display: Store automatically and display the parameters changed by the user (Up to 32 sets); can also be used as change history
- Unusual state detection feature provides signal based on deviations from normal operation.
- Multiple PID loops for control flexibility
- Capable of driving permanent magnet (PMAC) as well as standard induction motors
- Data Comparison function: Display parameters changed from default setting
- Built in Easy Sequence (EzSQ) PLC-like functionality
- Programming can be accomplished using low voltage power source
- Selectable modes: Basic (i.e. WJ200) and Extended (i.e. SJ-P1)
- Dynamic braking transistor in all models
- Dual rated for CT/VT applications
- Simple position control capability “Enhanced”
- Active parameter display: Display those parameters which are enabled.
- Quick display: Display 32 user-selected parameters
- Recycled resin used in manufacturing of new C1 products
- 0.4 ~ 15kW (3-phase 400V)
- 0.1 ~ 15kW (3-phase 200V)
- 0.4, 0.75kW (1-phase 100V)
- 0.1 ~ 2.2kW (1-phase 200V)
