Invertek
BC32003-00I1FM-0HEX0-B3R
HVAC VFD, 200-240V, 3 Phase, 3hp, 10.5 Amp (10.5A), NEMA 3R, Bypass
$3,695.10
BC32003-00ISFM-0HEX0-B3R
$3,535.19
HVAC VFD, 200-240V, 3 Phase, 3hp, 10.5 Amp (10.5A), NEMA 3R, Bypass
- Weight:
- 101.00 LBS
- Minimum Purchase:
- 1 unit
Description

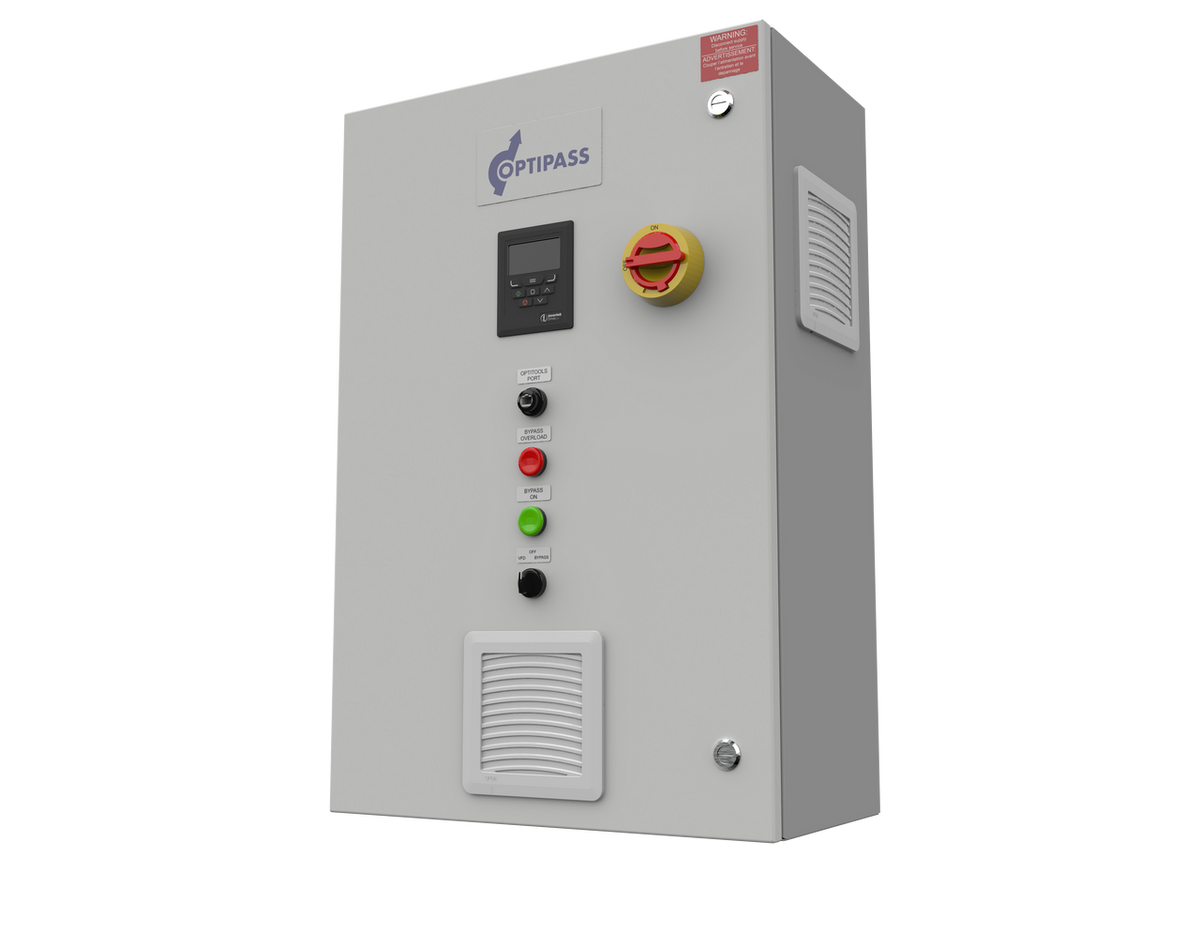

The Invertek OptiPass is a bypass drive solution for fan and pump applications.
This series optimizes the performance of fan and pumps in HVAC applications. The bypass circuit offers the safety and back-up many users also want.
- BACnet built-in standard
- Low harmonic design - EN 61000-3-12 compliant
- Available from 1 to 175hp in 200 to 480V models, 3 phase input
- Reliable VFD and DOL control
- The optional electronic bypass feature assures the user optimal time under VFD control with no need to manually change to bypass.
Belt Break/Dry Pump Detection:
OptiPass can provide immediate warning of broken belt or dry pump. Due to its simple and flexible configuration the feature can also be used for any loss of load condition, such as broken coupling or other mechanical failure.
Specifications
Warranty
3 Years
Additional Documents
Invertek BC32(001-003)-00I(S,1)FM-0HEX(0_L)-B3R Drawing
Drives - Type of Drive
Fan and Pump/HVAC
Series
OptiPass Series
Weight
101
Product Data Sheet
Invertek OptiPass Spec Table NEMA3R
Brochure
Invertek OptiPass Brochure
Output
3 Phase Output
Horsepower
3 hp
Outdoor Rated
Yes
Housing/Enclosure
NEMA 3R (IP22)
Input Voltage
200-240V, 3 Phase
