Invertek
BC32001-00I1FM-0HEX0-F01
HVAC VFD, 200-240V, 3 Phase, 1hp, 4.3 Amp (4.3A), NEMA 1, Vertical, Bypass, Frame 1, 46.35 x 13.15 x 10.00" (HWD)
$2,547.24
BC32001-00I1FM-0HEX0-B3R
$3,616.68
HVAC VFD, 200-240V, 3 Phase, 1hp, 4.3 Amp (4.3A), NEMA 3R, Bypass
- Weight:
- 101.00 LBS
- Minimum Purchase:
- 1 unit
Description

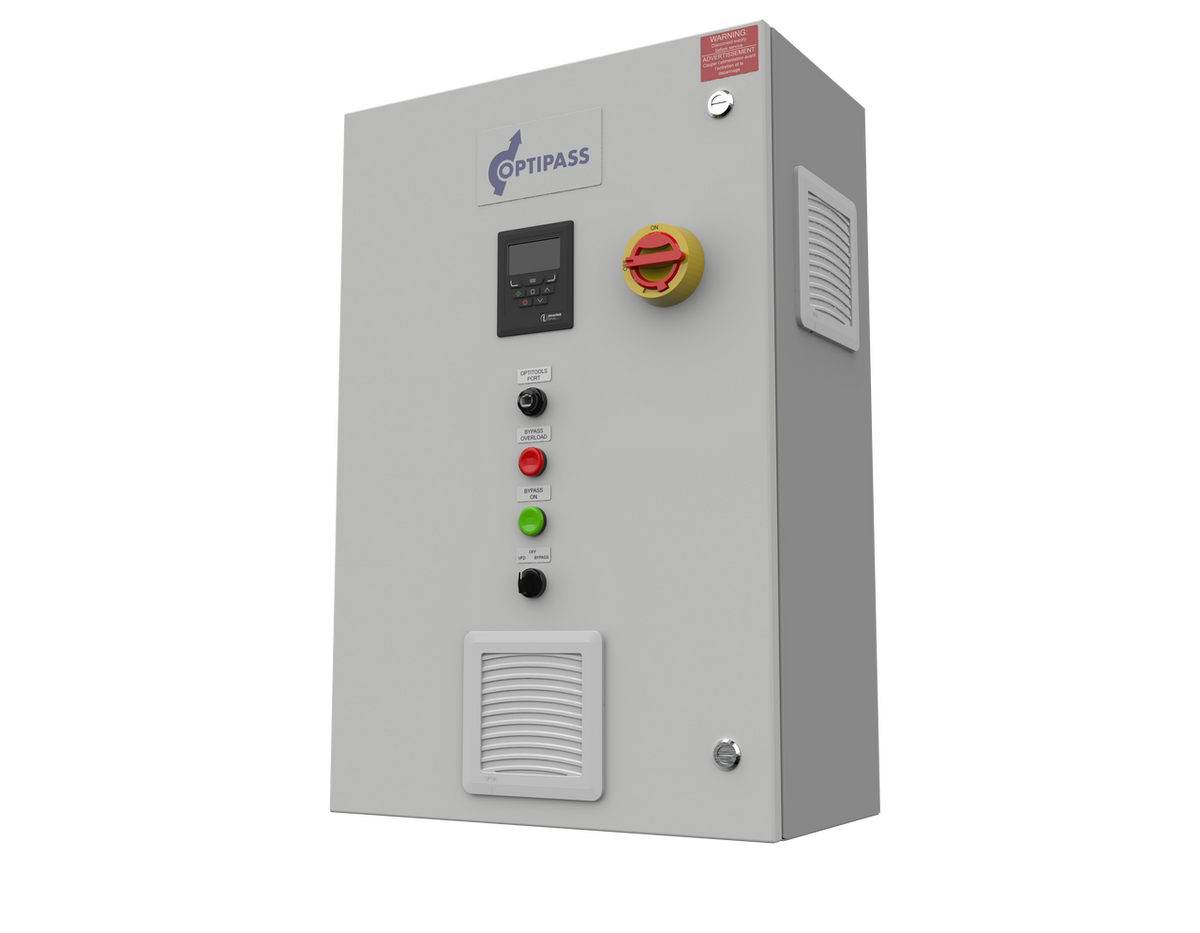

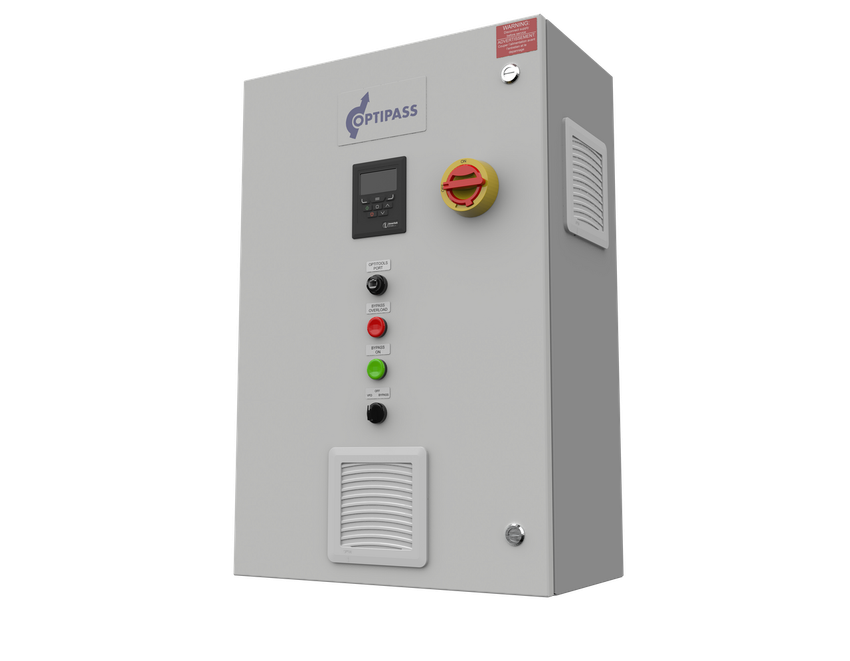

The Invertek OptiPass is a bypass drive solution for fan and pump applications.
This series optimizes the performance of fan and pumps in HVAC applications. The bypass circuit offers the safety and back-up many users also want.
- BACnet built-in standard
- Low harmonic design - EN 61000-3-12 compliant
- Available from 1 to 175hp in 200 to 480V models, 3 phase input
- Reliable VFD and DOL control
- The optional electronic bypass feature assures the user optimal time under VFD control with no need to manually change to bypass.
Belt Break/Dry Pump Detection:
OptiPass can provide immediate warning of broken belt or dry pump. Due to its simple and flexible configuration the feature can also be used for any loss of load condition, such as broken coupling or other mechanical failure.
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$3,417.81
$4,149.19
$5,397.90
$4,149.19
$4,309.51
Invertek
BC32003-00I1FM-0HEX0-B3R
HVAC VFD, 200-240V, 3 Phase, 3hp, 10.5 Amp (10.5A), NEMA 3R, Bypass
$3,682.44
$3,682.44
