$5,739.60
BC22015-00I1FM-0HEX0-B3R
$6,066.77

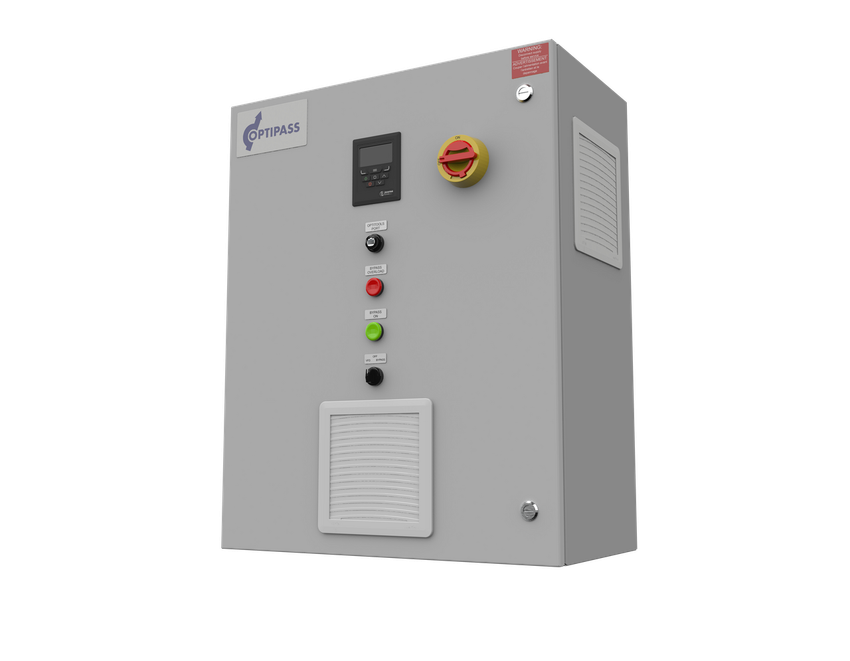

HVAC VFD, 200-240V, 3 Phase, 15hp, 46 Amp (46A), NEMA 3R, Bypass
- Weight:
- 151.00 LBS
- Minimum Purchase:
- 1 unit
Description
The Invertek OptiPass is a bypass drive solution for fan and pump applications.
This series optimizes the performance of fan and pumps in HVAC applications. The bypass circuit offers the safety and back-up many users also want.
- BACnet built-in standard
- Low harmonic design - EN 61000-3-12 compliant
- Available from 1 to 175hp in 200 to 480V models, 3 phase input
- Reliable VFD and DOL control
- The optional electronic bypass feature assures the user optimal time under VFD control with no need to manually change to bypass.
Belt Break/Dry Pump Detection:
OptiPass can provide immediate warning of broken belt or dry pump. Due to its simple and flexible configuration the feature can also be used for any loss of load condition, such as broken coupling or other mechanical failure.
Specifications
Warranty
3 Years
Drives - Type of Drive
Fan and Pump/HVAC
Brochure
Invertek OptiPass Brochure
Product Data Sheet
Invertek OptiPass Spec Table NEMA3R
Additional Documents
Invertek BC22(010-015)-00I(S,1)FM-0HEX(0_L)-B3R Drawing
Series
OptiPass Series
Weight
151
Housing/Enclosure
NEMA 3R (IP22)
Output
3 Phase Output
Horsepower
15 hp
Input Voltage
200-240V, 3 Phase
Outdoor Rated
Yes
