Weg
CFW320-IOAENC
Lower Slot I/O Expansion Module and Encoder Input: 1 Analog Input, 2 Analog Outputs, +10VDC, and 1 Incremental Encoder Input, +5VDC
$80.11
CFW320-CRS485
Alt: 16047140
$45.70
RS-485 Communication Module: (Modbus RTU / BACnet MS / TP), 1 Mini USB for Remote Keypad
- Weight:
- 0.20 LBS
- Minimum Purchase:
- 1 unit
Description
The WEG CFW320 is a variable speed drive for three-phase induction motors that gives you a combination of precision, flexibility, and cost-effectiveness.
With a compact size & contactor-like installation (top-in, bottom-out), it is ideal for applications on machines or equipment.
Features of the CFW320 Series:
New Ratings for 3/460VAC:
1.1…14.0 A (0.5 to 10HP) @ 3/460 Vac.
Same current range as the existing CFW300 drives:
1.6…6.0 A (0.25 to 2HP) @ 3/230Vac with 1/110-127 Vac Supply Voltage.
1.6…15.2 A (0.25 to 5HP) @ 3/230 Vac with 1-Ph or 3-Ph, 230Vac Supply voltage.
Drop in mechanical replacement (ratings to ratings) for the CFW300 drives.
Meets the UL 61800-5-1 standard.
Built-in SotfPLC (PLC functionalities) & conformal-coated circuit board.
Control modes: Scalar (V/F) & Voltage Vector WEG (VVW) Control.
On-board 4 Digital Inputs, 1 Analog Input, and 1 Relay output.
2 independent slots for function expansion – Slot#1 (upper Slot) for Communication and Slot #2 (lower Slot) for I/O expansion.
Degree of Protection: IP20.
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$44.09
Weg
CFW500-CRS485-B
RS485 Communication Plug-in Module, CFW500 Communication Module: RS485 Card: 2 RS485, 4 DI, 2 AI, 1 AO, 2 DOR, 1 DOT, 10VDC, 24VDC for CFW500 Drives
$76.87
$60.21
Weg

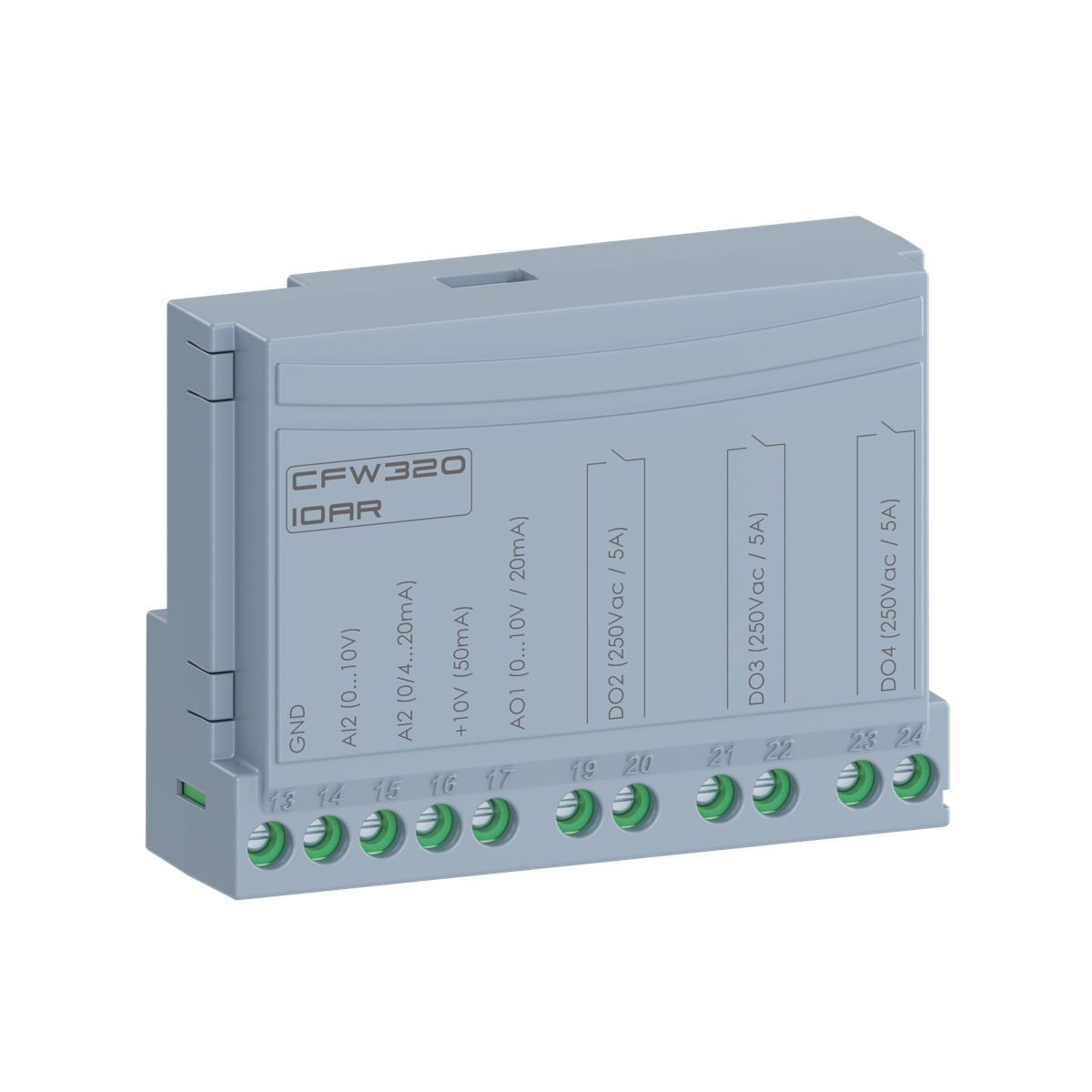

CFW320-IOAR
Lower Slot I/O Expansion Module; 1 Analog Input, 1 Analog Output and 3 Digital Relay Outputs, 10VDC Power Supply
$78.48
$48.38
$53.76
Weg
CFW320-IODF
Lower Slot I/O Expansion Module: 3 Digital Inputs in Frequency and 3 Digital Outputs in Frequency (10Hz to 3000Hz), Multipump Application
$64.51
Weg
CFW320-IOADR
Lower Slot I/O Expansion Module: 1 NTC Input, 3 Relay Outputs, and 1 Input for Infrared Sensor, (Infrared sensor, NTC and Remote Control with Battery Included)
$115.58
