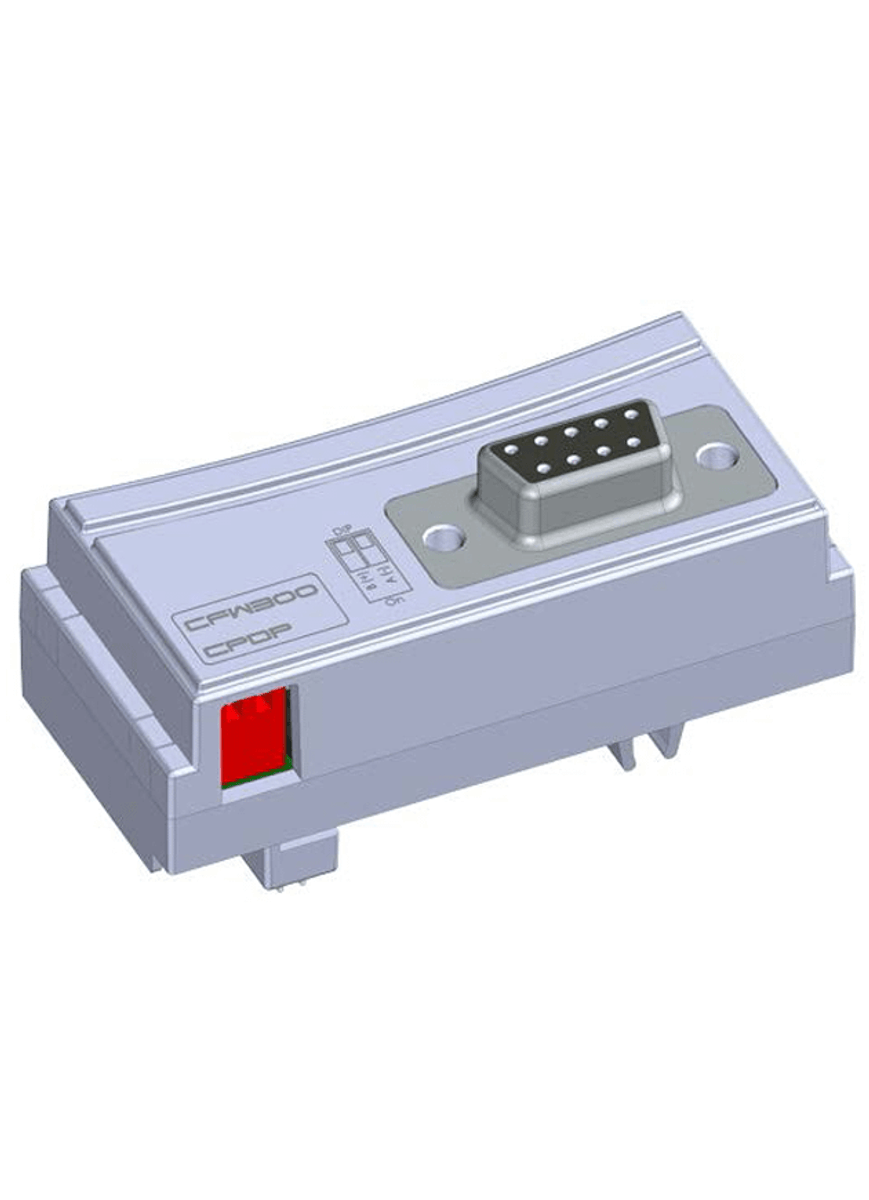

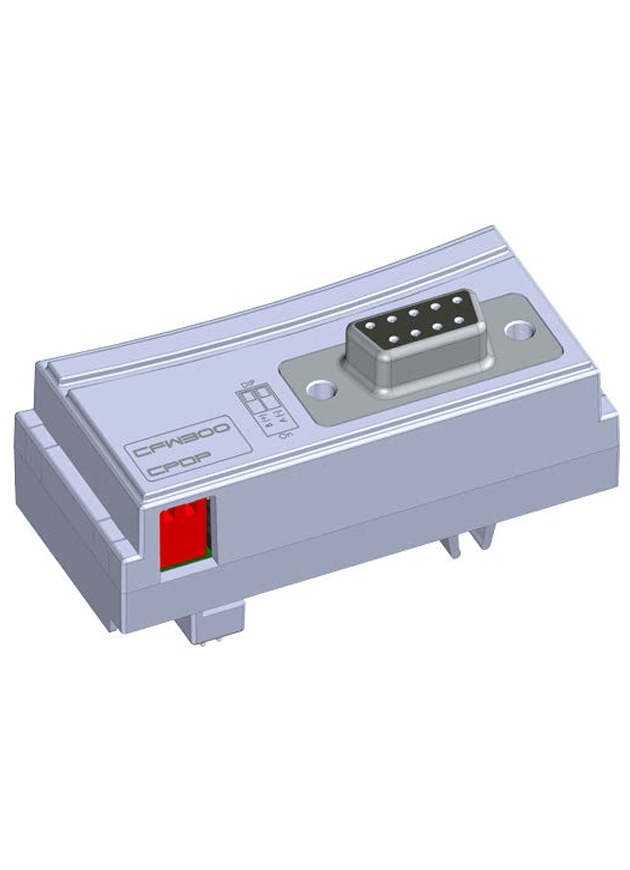

CFW320-CPDP

The WEG CFW320 is a variable speed drive for three-phase induction motors that gives you a combination of precision, flexibility, and cost-effectiveness.

With a compact size & contactor-like installation (top-in, bottom-out), it is ideal for applications on machines or equipment.

Features of the CFW320 Series:

• New Ratings for 3/460VAC:

  • 1.1…14.0 A (0.5 to 10HP) @ 3/460 Vac.

• Same current range as the existing CFW300 drives:

  • 1.6…6.0 A (0.25 to 2HP) @ 3/230Vac with 1/110-127 Vac Supply Voltage.

  • 1.6…15.2 A (0.25 to 5HP) @ 3/230 Vac with 1-Ph or 3-Ph, 230Vac Supply voltage.

• Drop in mechanical replacement (ratings to ratings) for the CFW300 drives.

• Meets the UL 61800-5-1 standard.

• Built-in SotfPLC (PLC functionalities) & conformal-coated circuit board.

• Control modes: Scalar (V/F) & Voltage Vector WEG (VVW) Control.

• On-board 4 Digital Inputs, 1 Analog Input, and 1 Relay output.

• 2 independent slots for function expansion – Slot#1 (upper Slot) for Communication and Slot #2 (lower Slot) for I/O expansion.

• Degree of Protection: IP20.
